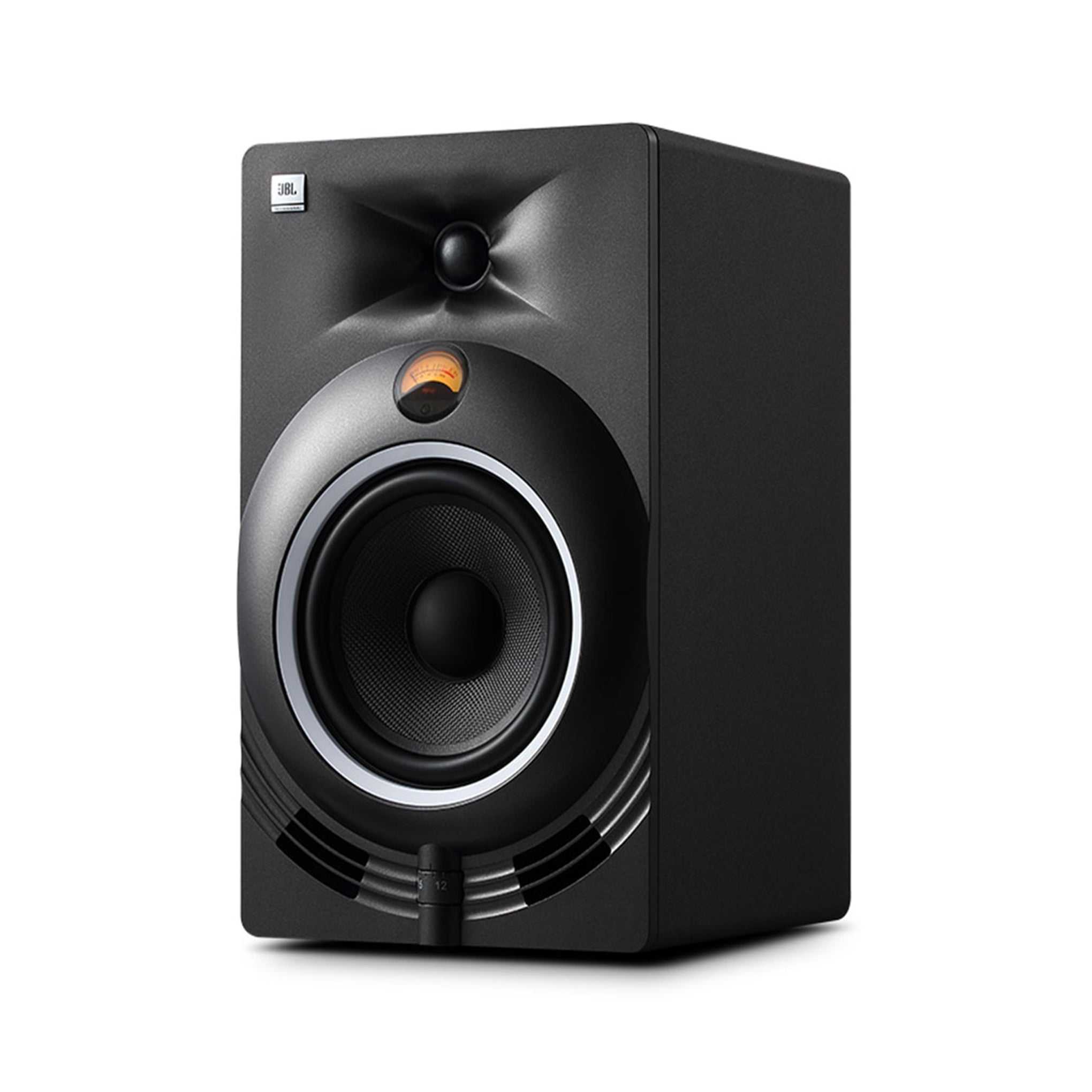

JBL NANO K6

6” Full-range Powered Reference Monitor

FEATURES

• Legendary JBL sound quality and accuracy for audio production
• Image Control Waveguide delivers precise imaging and clarity with a broad sweet spot Optimally positioned tweeter and woofer provides aligned acoustic center and eliminates phasing issues found in other speakers
• Vintage-style VU meter offers quick and simple monitoring of levels
• Stylish design with a bright orange ring around woofer and music-themed silhouette on rear
• Power switch and volume control on the front panel offer easy control
• Pairs perfectly with JBL NANO KX Bluetooth volume controller for Bluetooth integration and wireless streaming capabilities

TECHNICAL SPECIFICATIONS

• FREQUENCY RANGE:-  38 Hz – 20 kHz
• CROSSOVER Amp:-  3.2 kHz
• MAXIMUM SPL (@1M):- 110 dB
• MAXIMUM INPUT LEVEL:-  Unbalanced: +6 dBV; Balanced: +20.3 dBV
• INPUTS:-  1 x RCA (unbalanced); 1 x TRS or 1 x XLR (balanced)
• INPUT SENSITIVITY(-10 dBV INPUT):-  92 dB @ 1m
• HF DRIVER SIZE:-  0.98” (25 mm)
• LF DRIVER SIZE:-  6.5” (165.1 mm)
• HF DRIVER POWER AMP:- 70 W Class AB
• LF DRIVER POWER AMP:- 70 W Class AB
• HF TRIM CONTROL:- +1 dB, 0 dB,-1 dB, -2 dB @ 10 kHz
• LF TRIM CONTROL:-  +2 dB, 0 dB,-1 dB, -2 dB @ 60 Hz
• AC INPUT VOLTAGE:-  220 VAC ±10%, 50 – 60 Hz
• THD+N:- < 0.2%
• NOISE;- < 0.3 mV
• S/N:-  > 95 dB
• ENCLOSURE CONSTRUCTION:- 15 mm MDF
• ENCLOSURE FINISH:-  PVC
• BAFFLE CONSTRUCTION:- ABS + PC
• DIMENSIONS (H x W x D):-  359 x 215 x 263.5 mm
• WEIGHT:-  4.78 kg
• SHIPPING CARTON (H x W x D):- 338 x 302 x 460 mm
• SHIPPING WEIGHT:- 6.08 kg
