4.5" Two-Way Installation Speakers
TECHNICAL SPECIFICATIONS
ACOUSTICAL
SPECIFICATIONS
• Freq. Response (-3 dB) : 85 Hz - 20 kHz
• Freq. Range (-10 dB) : 68 Hz - 20 kHz
• Rated Power : 50W AES, 200W Peak
• H Dispersion : 140 (- 6 dB)
• V Dispersion : 140° (- 6 dB)
• Crossover : 1.7 kHz Passive
• Nominal Impedance : 8 Ω
• Max Output : 104 dB, 110dB Peak
• 100V/70V Transformer Taps : 5W, 10W,
20W, 40W Available
• Impedance Toggle Switch to choose
between 8 Ω or 100V operation
• Euroblock Terminal
SYSTEM SPECIFICATIONS
• Recommended System Control : Can be
used without DSP or with the PW-Six DSP
for voicing & tonal benefits
• Recommended Subwoofers : See Systems
chart for compatible subwoofer
• Recommended Amplifiers : See Amplifier
load calculation chart
LF TRANSDUCER
• 4.5" Mid-High Driver with Axial Motors
• 40W AES, 160W Peak
• 1" Voice Coil - Ferrite Magnet
• Special High Strength axial magnetic
motors for controlled movement
• Flared Ports for Low Frequency Support
HF TRANSDUCER
• 0.75" Silk Dome Tweeter
• 10W AES, 40W Peak
• 0.75" Voice Coil - Ferrite Magnet
• Silk Dome Tweeter for smooth & natural
sound
HOUSING
• Impact Resistant ABS with UV Stabilisers
• Matte White Finish
• Powder coated steel grills
• Rotary Transformer Tap Selector

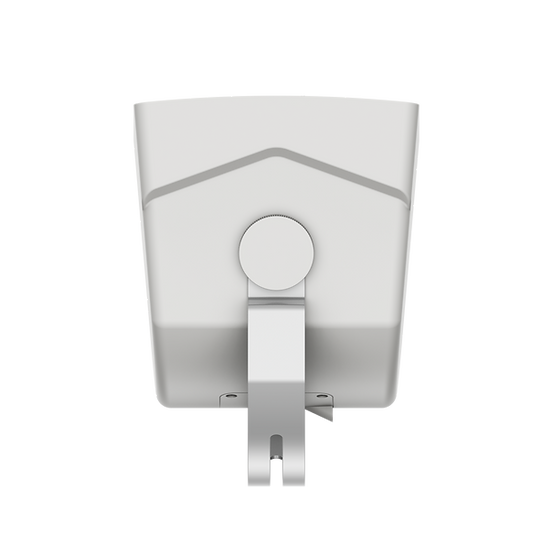

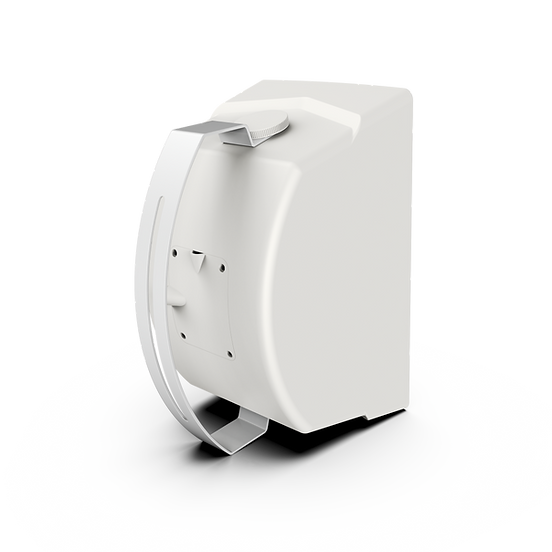

• Yoke Bracket Included
• No handles, bar mould for easy lifting
• Installation brackets : VS Throne, VS Yoke 6
AESTHETIC
SPECIFICATIONS
• British Acoustics Signature Matte Silver
Tone

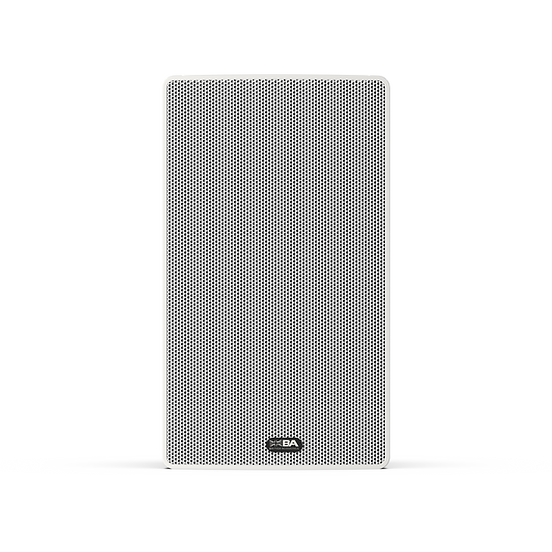

• Non Reflective, Matte White Grills
OPERATING PARAMETERS
• Operating Positions : Must be Deployed with
the original brackets, or an M10 insert as a
pendant
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -20° C (-4° F)
IP SPECIFICATIONS
• IP 54 - Offers basic protection against dust
& splashes
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product: 203 x 157.5 x 101 mm (H x W x D)
• Product: 8 x 6.2 x 4 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 4.2 kgs
• Net : 9.26 Lbs
SHIPPING INFORMATION
• Carton SIze
278 x 232.5 x 176 mm (H x W x D)
10.94 x 9.15 x 6.92 inch (H x W x D)
• Gross Weight : 4.41 Kgs / 9.724 Lbs
• Packed : individually
