key Features:

• Up to 80 channels to mix
• 32 Mic Inputs
• 8 XLR/1/4" Combi-jacks for line inputs and instruments
• 40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
• 31 Output busses (All with full DSP processing and GEQ)
• 4-band Fully Parametric EQ on each channel and bus
• 8 VCAs + 8 Mute groups

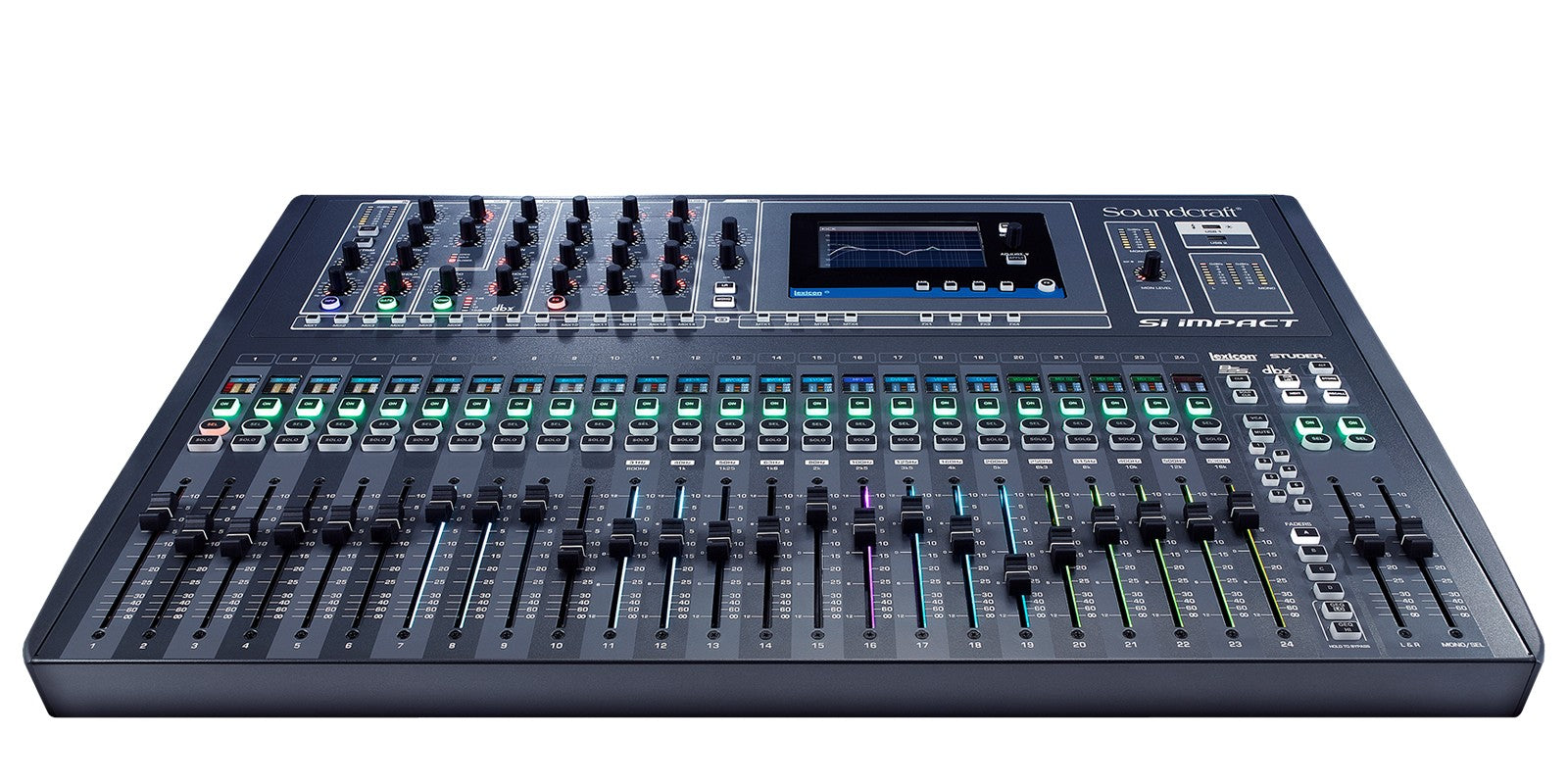

• 26 motorised faders (24 input + LR/Mono)
• 4 fully customisable Fader Layers
• Built-in Stagebox Connectivity
• 5" touchscreen display
• Multi-Colour LCD Channel Displays on each input fader
• 4 studio-grade Lexicon Effects engines and dedicated FX busses
• BSS Graphic Equalisers on every bus
• 20 sub-group / aux busses
• 4 mono/stereo matrix busses
• 32x32 USB audio interface for multi-track recording and playback *
• Increase I/O capabilities with option cards and stageboxes:
  • Use included MADI option card and or 16i for more microphone preamps, inputs and channels to mix
  • Add 2^nd MADI option card and two Soundcraft Mini Stagebox 32i or 16i for up to 96 microphone preamps, 136 total inputs and 80 channels to mix.
  • Add Dante option card for 64 channels of Dante to mix
  • Additional option cards available: AVIOM A-Net, CobraNet, AES/EBU, BLU Link,
• Additional Soundcraft stageboxes available:
