OPTICS

• 13-element 13:1 zoom high-resolution optic system
• Zoom aperture: 4 ° to 52 °
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 180 mm frontal lens

LIGHT SOURCE

• 58,000 lumens white light engine
• Total luminaire output: up to 43,000 lumens (integrating sphere measurement, Stage Fan mode)
• Colour temperature output: 6500 K
• Variable CRI: 70 to 86
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation

COLOURS

• Sophisticated colour mixing system providing CMY color mixing
• Variable CTO colour temperature correction
• Variable CRI improvement filter
• Fixed colour wheel with seven complementary colours

GOBOS

• 2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30.0 mm
• Image diameter: 19.0 mm
• Gobo thickness: 1.1 mm

FRAMING SYSTEM

• 4 individually positionable shutter blades on a 100% surface area in all positions
• Rotation of the shutter blades module: +/- 90 °

IRIS DIAPHRAGM

• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open

FROST

• 2 frost filters one light, one heavy

EFFECTS

• Focusable graphic animation effect-wheel with continuous rotation in both directions
• 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

DIMMER / STROBE

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FEATURES

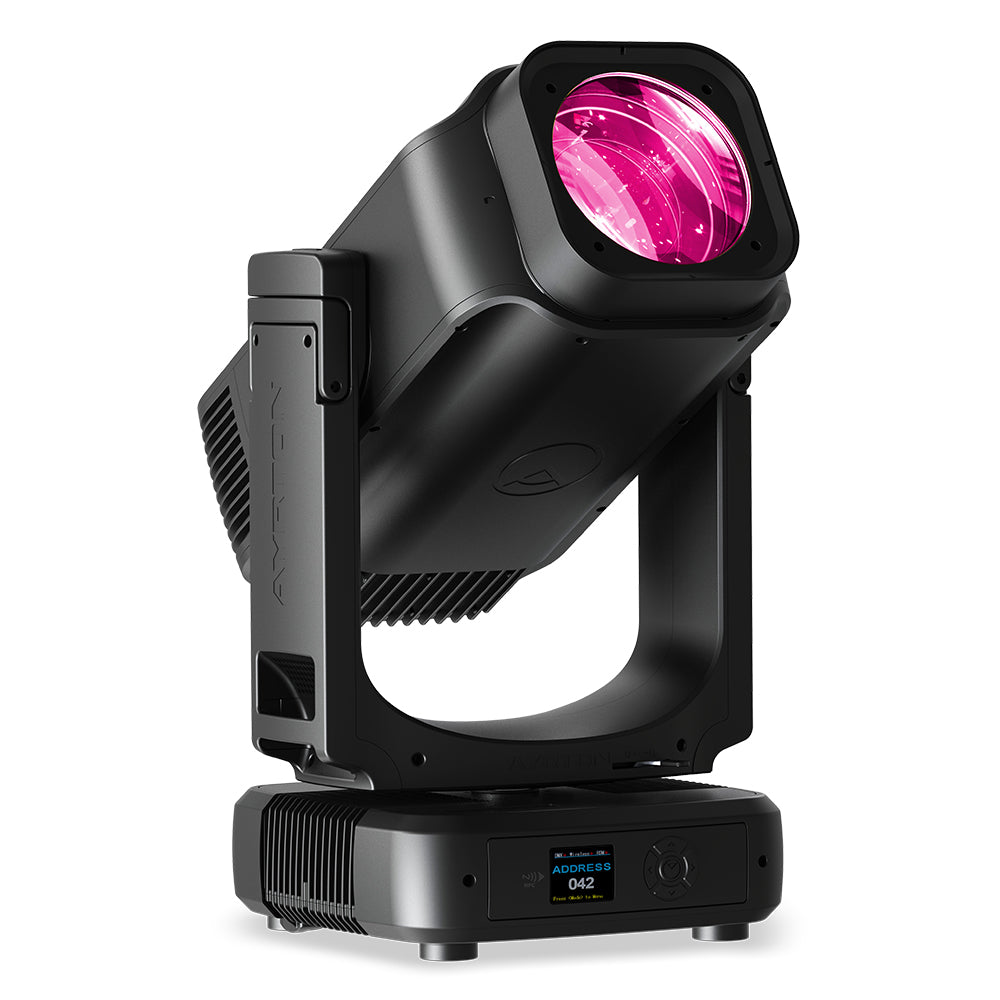

• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet connection
• IP65 PowerCON TRUE1 male connectors for power connection

CONTROL

• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 2 DMX modes (from 44 to 67 DMX channels)

POWER SUPPLY

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 1300 W maximum

COOLING SYSTEM

• Advanced liquid cooling system
• IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes including Super Silent Mode
• Safety protection against excess temperature

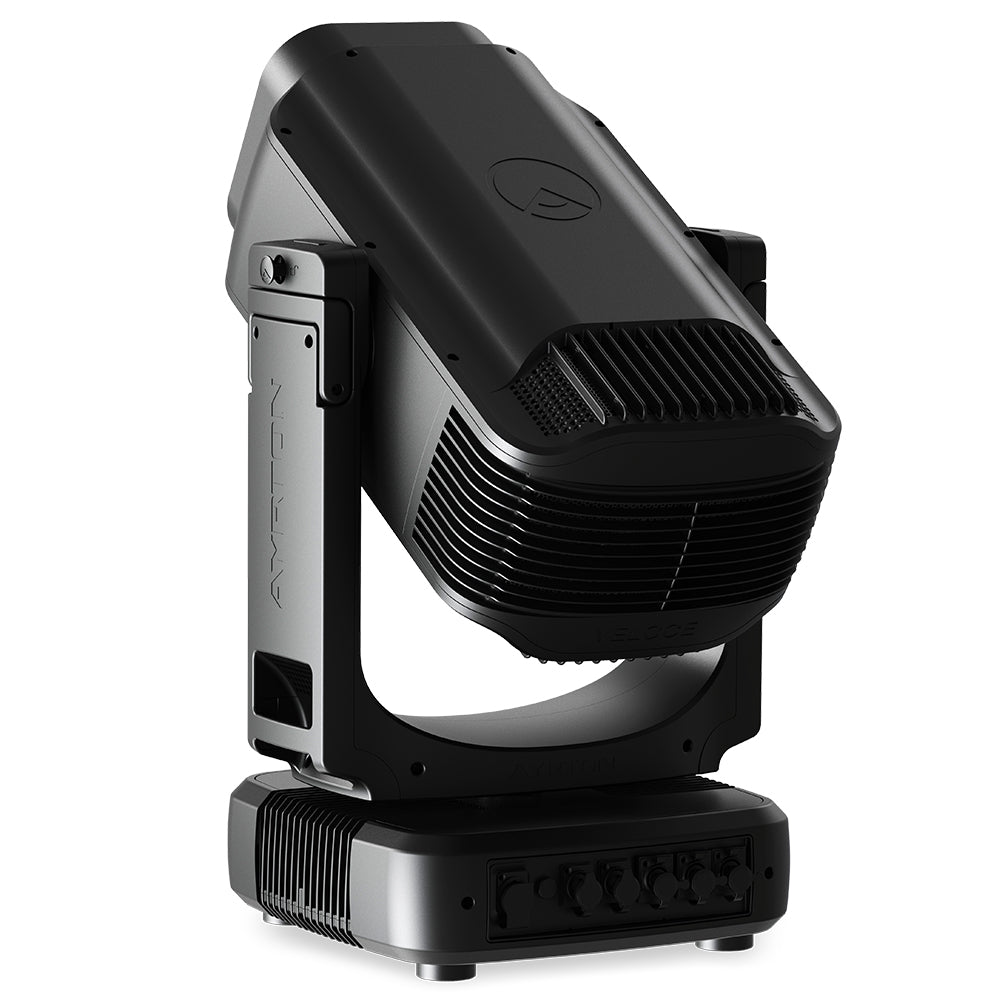

HOUSING

• Moving-head skeleton made of aluminium and steel metal plates
• Head in die-cast aluminium
• Heatsinks in aluminium and copper
• Arms in self-extinguishing fire retardant ABS PC (V0 class)
• Four-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)

INSTALLATION

• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
• Minimum permitted ambient temperature (Ta min): -20 °C (-4 °F)
• Minimum usage distance: 4 m (13.123 ft)

COMPLIANCE

EU (EMC & LVD):

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC)

• UL 1573
• FCC Part 15, Subpart B:2018

SIZE

• Product: 404 x 757 x 366 mm (l x h x d)
• Flight-case foam: 500 x 640 x 680 mm (l x h x d)

WEIGHT

• Product: 40.5 kg

PRODUCT CODES

• 012521: Veloce Profile  – Ultimate IP65 6 Series
