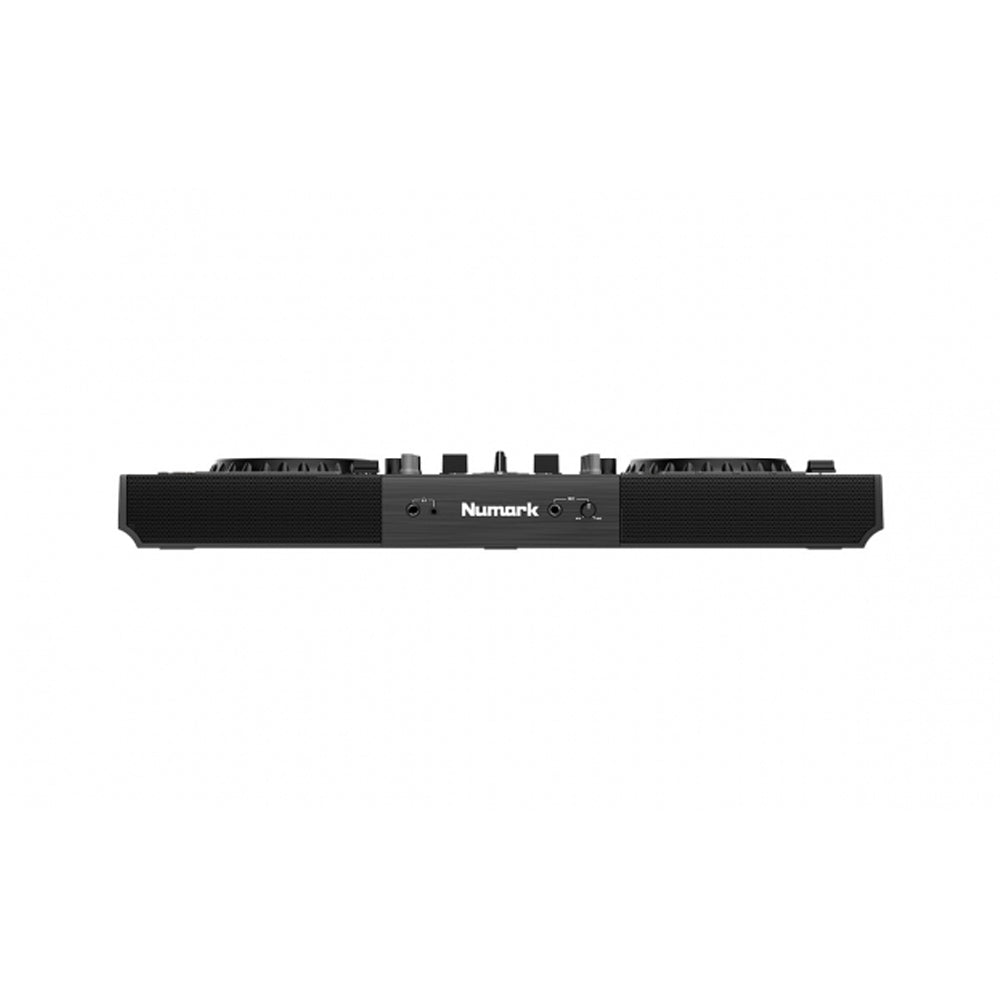

Mixstream Pro +

Dimensions

• Width x Depth x Height: 22.3” x 11.2” x 2.9” / 566 x 284 x 74 mm

• Weight: 8.11 lbs. / 3.68 kg

Audio

• Main Outputs

  • Frequency Response: 20 Hz – 20 kHz +/- 1 dB

  • Dynamic Range: > 114 dB (A-weighted)

  • Signal-to-Noise Ratio: > 94 dB (A-weighted)

• Headroom

  • Mic: > 16 dB

  • Outputs: > 16 dB

• Channel Separation: < -110 dB (1 kHz, unity)

• T.H.D.

• • Line: < 0.01% (1 kHz, unity)

  • Microphone: < 0.05% (1 kHz, unity)

• Speakers

  • Frequency Response: 20 Hz – 20 kHz +/- 1 dB

•  Analog Input

  • Microphone: -40 dBu (unity) / -60 dBu (minimum)

•  Analog Output

  • Master, Balanced: +20 dBu (maximum) / +4 dBu (unity)

  •  Master, Unbalanced: +16 dBu (maximum) / 0 dBu (unity)

• Headphone Output: < 30 mW

•  Connections

  • Audio Outputs

    • 2 XLR outputs (main left/right,balanced)

    • 1 RCA output pair (main left/right, unbalanced)

    • 1 1/4” (6.35 mm) stereo output (headphones)

    • 1 1/8” (3.5 mm) stereo output (headphones)

  • Audio Inputs

    • 1 1/4” (6.35 mm) microphone input

  • Other

    • 2 USB port (for USB drives)

    • 1 USB port (to computer)

    • 1 SD card slot

    • 1 power adapter input

Engine DJ (OS) Playable Media

• Media Types

  • SD, SDHC, SDXC

  • USB mass-storage devices (flash memory, external HDD enclosures)

• File Systems

  • exFAT (recommended)

  • FAT32

• File Formats

  • AAC/M4A

  • AIF/AIFF (44.1–192 kHz, 16–32-bit)

  • ALAC

  • FLAC

  • MP3 (32–320 kbps)

  • MP4

  • Ogg Vorbis

  • WAV (44.1–192 kHz, 16–32-bit)

Power

• Connection: DC, Center Positive

• Voltage: 12.0 V 3.0 A
