FEATURES

(480) 1.5W RGB LED's in 40 Zones
(200) 5W CW Strobe LED's in 40 Zones
(80) 1.5W RGB StrobeLine LED's in 20 Zones
Completely Fanless Cooling

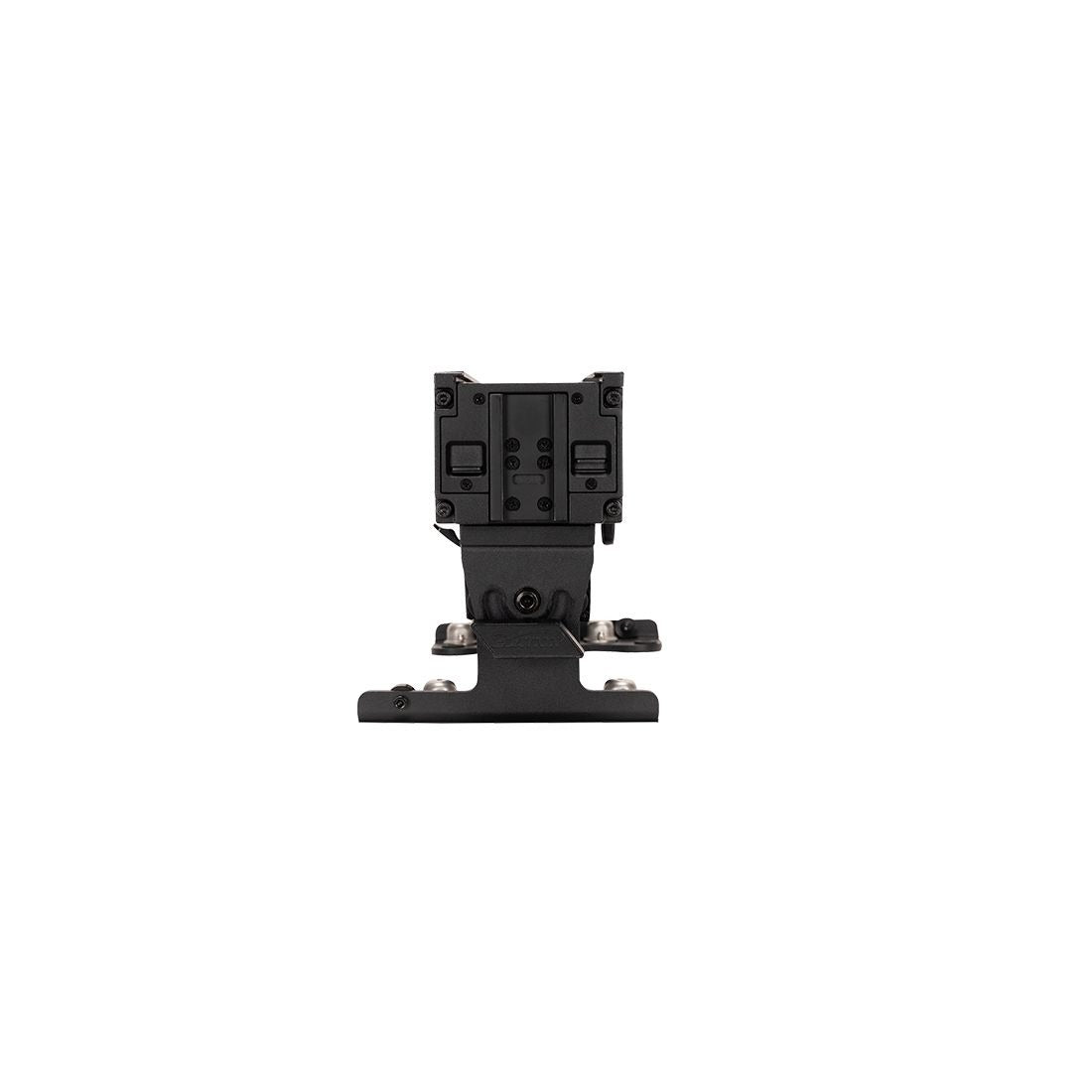

Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated





SOURCE

(560) 1.5W RGB LEDs
(200) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.



PHOTOMETRIC DATA

Total Lumen Output:
Integrating Sphere
    All LED: 10,400 Lumens
    CW LED: 13,327 Lumens
    RGB LED: 5,034 Lumens
CRI: TBD
Beam Angle: TBD
Field Angle: TBD





EFFECTS

20 Zones of RGB Plate LEDs (10 x 2)
20 Zones of CW Strobe LEDs (10 x 2)
10 Zones of RGB StrobeLine LED's (10 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves

COLOR

RGB Color Array





CONTROL / CONNECTIONS

9 DMX Channel Modes (3ch, 11ch, 22ch, 34ch, 52ch, 124ch, 77ch, 132ch, 110ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

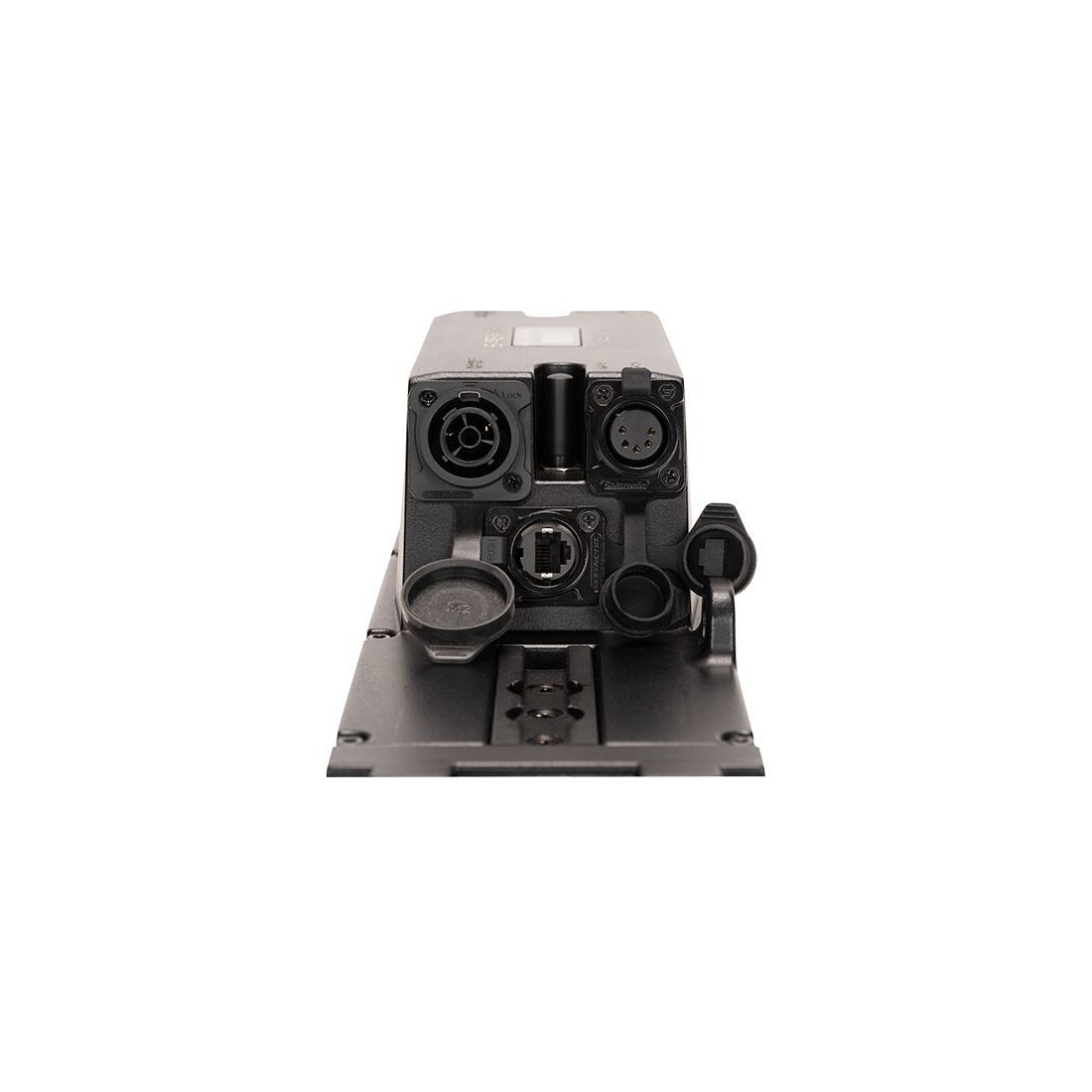

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
IP65 Locking Power Cable In/Out



SIZE / WEIGHT

Length: 501 mm (19.7”)
Width: 200 mm (7.9”)
Horizontal Height: 206 mm (8.11”)
Weight: 9,75 kg (21.5lbs.)





ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
Max Power Consumption 750W
Power Thru Capacity: 7A (1 unit @110V; 2 units @240V)
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 2557.5





INCLUDED ITEMS

IP65 Locking Power Cable
Fixture Interconnect Key
