XD 41
4 x 2500W Class-D Amplifier
The XD Series is an advanced Class- D Amplifier with 2 Channel & 4 Channel Variants which combines very high power density with superb audio performance, Low AC Current Draw, and The M2 Module for Active PFC in the Input & Output stage the XD can also provide multi-channel amplification across the British Acoustics loudspeaker range.
The XD a full 8000 watts per channel into 4 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.
The XD Series employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite that incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.

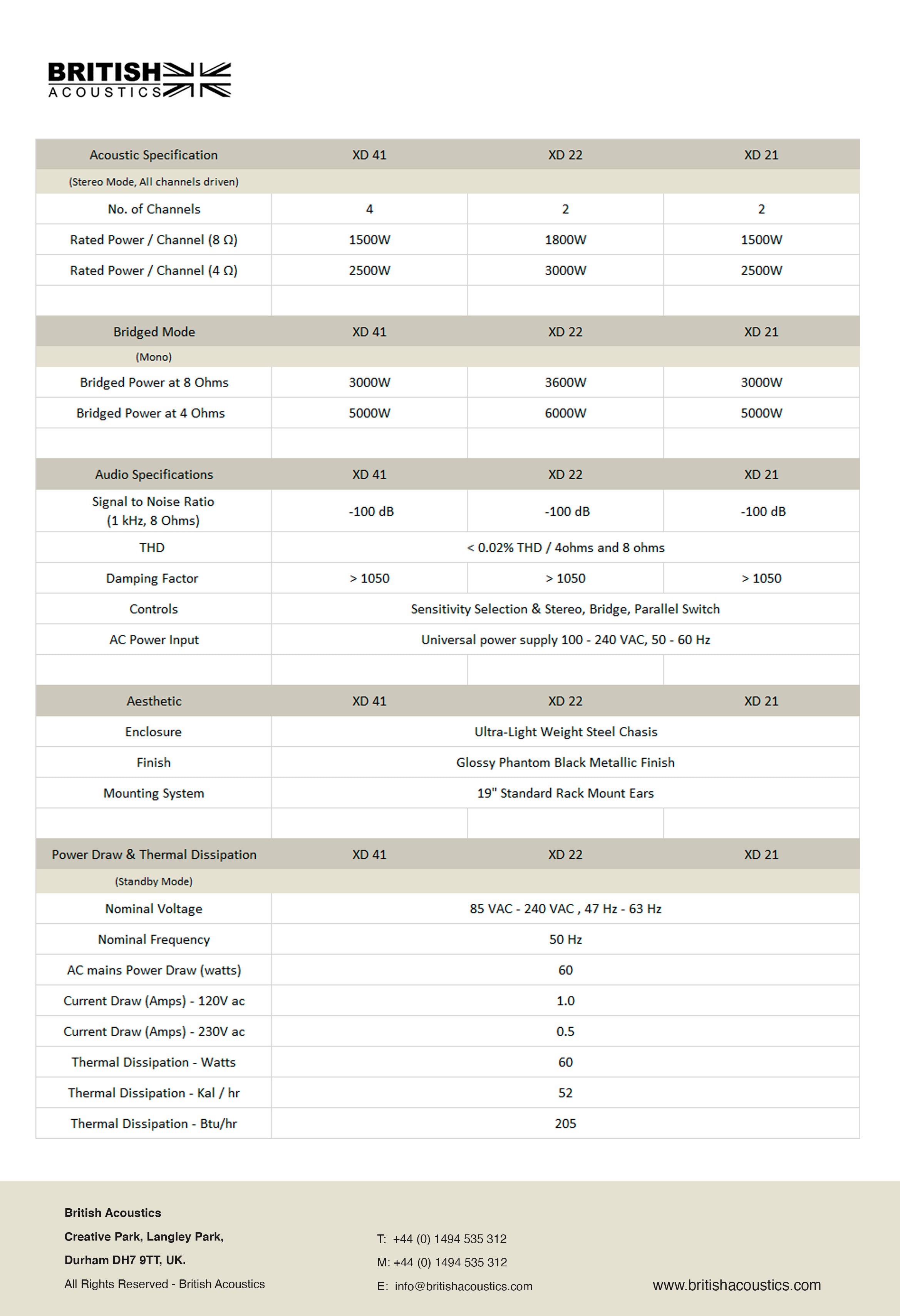

TECHNICAL SPECIFICATIONS
ACOUSTIC
No. of Channels - 4
Power at 4 Ohms (Stereo Mode, All channels driven) - 2500W
Power at 8 Ohms (Stereo Mode, All channels driven) - 1500W
Bridged Power at 8 Ohms - 3000W
Bridged Power at 4 Ohms - 5000W
Damping Factor - > 1050
Signal to Noise Ratio (1 kHz, 8 Ohms) - - 100 dB
THD - < 0.02% THD / 4ohms and 8 ohms
Controls - Sensitivity Selection & Stereo, Bridge, Parallel Switch
AC Power Input - Universal power supply 100 - 240 VAC, 50 - 60 H
AESTHETIC
Enclosure - Ultra-Light Weight Steel Chassis
LED Screen - 4.5" LED Screen Display
Finish - Glossy Phantom Black Metallic Finish
Mounting System - 19" Standard Rack Mount Ears
DIMENSIONS
Height - 3.5" (2 RU)
Width - 19"
Depth - 17.5"
Weight - 14.8gs
