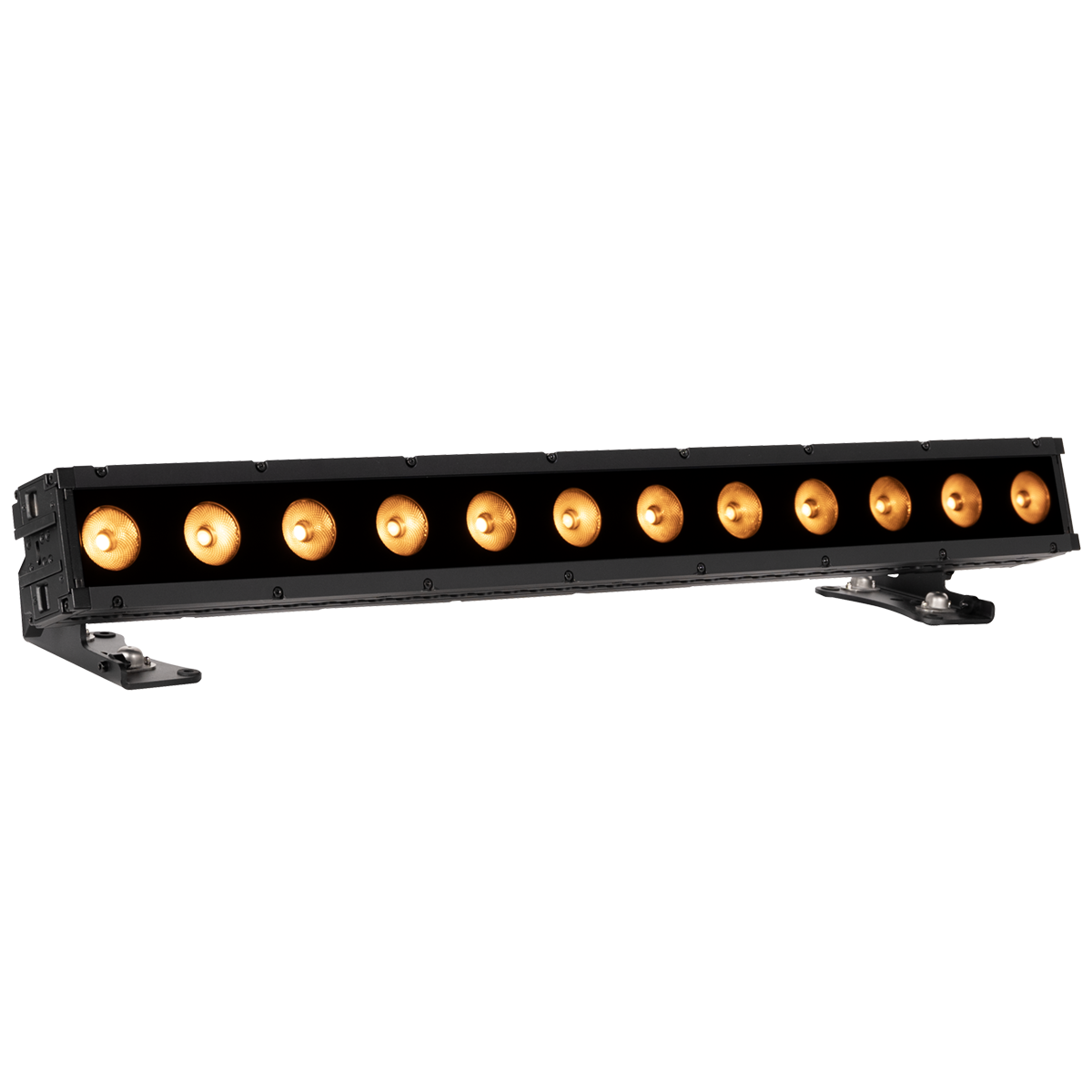

The meter-long SIX+ BAR L houses 12 RGBLA+UV LEDs and packs a punch at over 9000 lumens. With fully variable color
temperature adjustment (2400K - 8500K), CMY emulation, and a virtual gel library, designers have immediate access to a diverse
LED color array, including beautifully mixed whites. A time-efficient SixBar emulation mode ensures perfect color matching and
DMX control with existing SixBar fixtures. The integrated accessory slot accommodates the included frost filter, with optional
ND filters and other optics available. The fixture also ships with an included glare shield for wall wash applications.
Designed for ultimate flexibility, the SIX+ BAR L’s innovative housing allows for end-to-end interconnection and includes

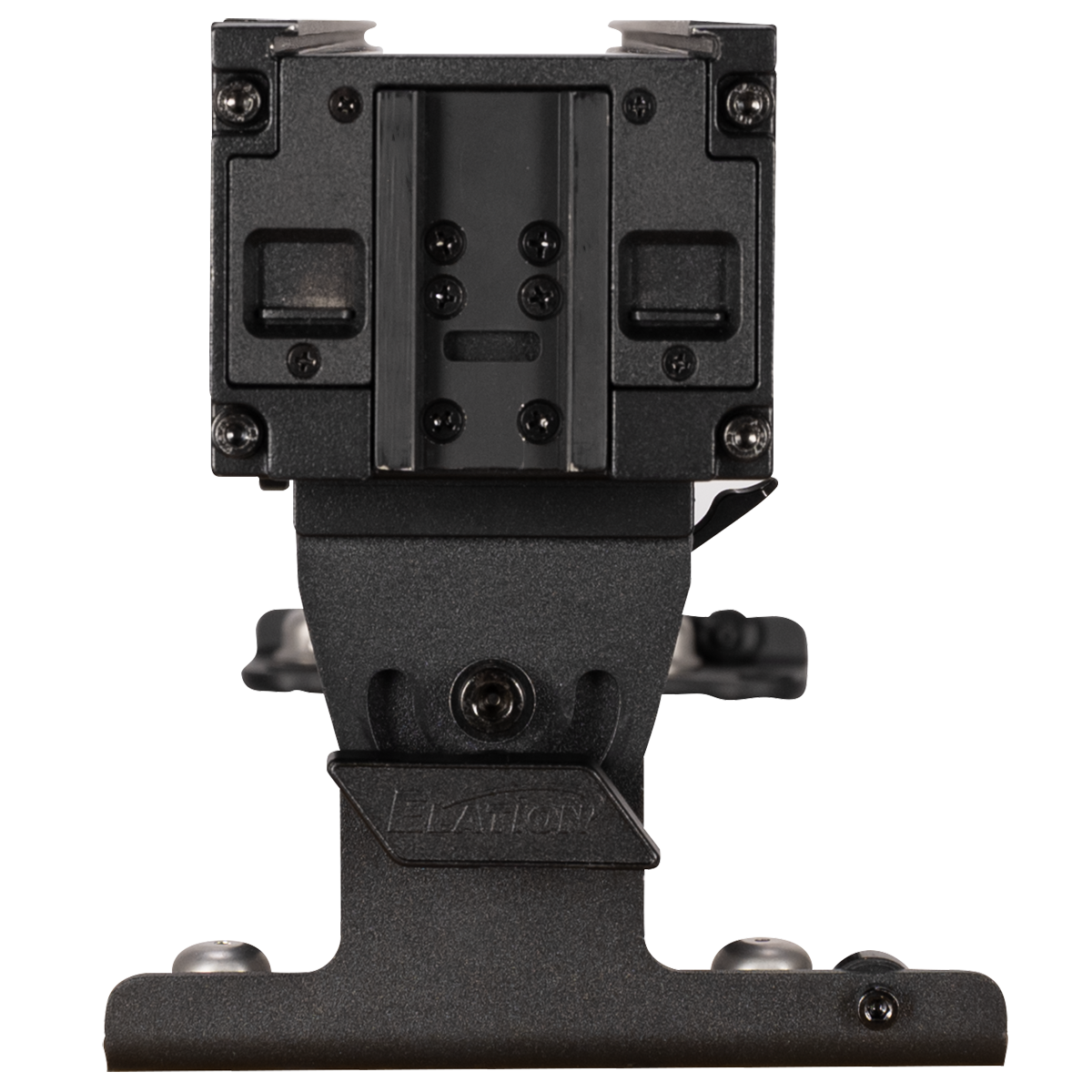

integrated L track on three sides for flexible mounting and positioning. Trunnions designed for attachment to the L track can be
fixed at multiple points to optimize positioning around objects or obstacles.

KEY FEATURES
(12) 20W RGBLA+UV LED Array
9325 Lumens, 92.3 CRI
Extra Large 50mm Lenses
Beam Angle: 20° (Frost Filter Included)
Full Pixel Control
Completely Fanless Cooling
Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated

SOURCE
(12) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but
not limited to:
Environmental Conditions, Power/Voltage, Usage
Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
9,325 (Integrating Sphere)
7,554 (Goniometer)
CRI- 92.3
TLCI- 83
No Lens
Beam Angle: 20°
Field Angle: 36°
Included Frost
Beam Angle: 32°
Field Angle: 60°
EFFECTS
Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Dim-to-Warm Fade
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
15 DMX Channel Modes (1ch, 3ch, 6ch, 9ch,
13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 34ch,
58ch, 82ch, 154ch, 72ch)
5 Six Bar 1000 Emulation DMX Channel Modes
(6ch, 7ch, 11ch, 13ch, 75ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

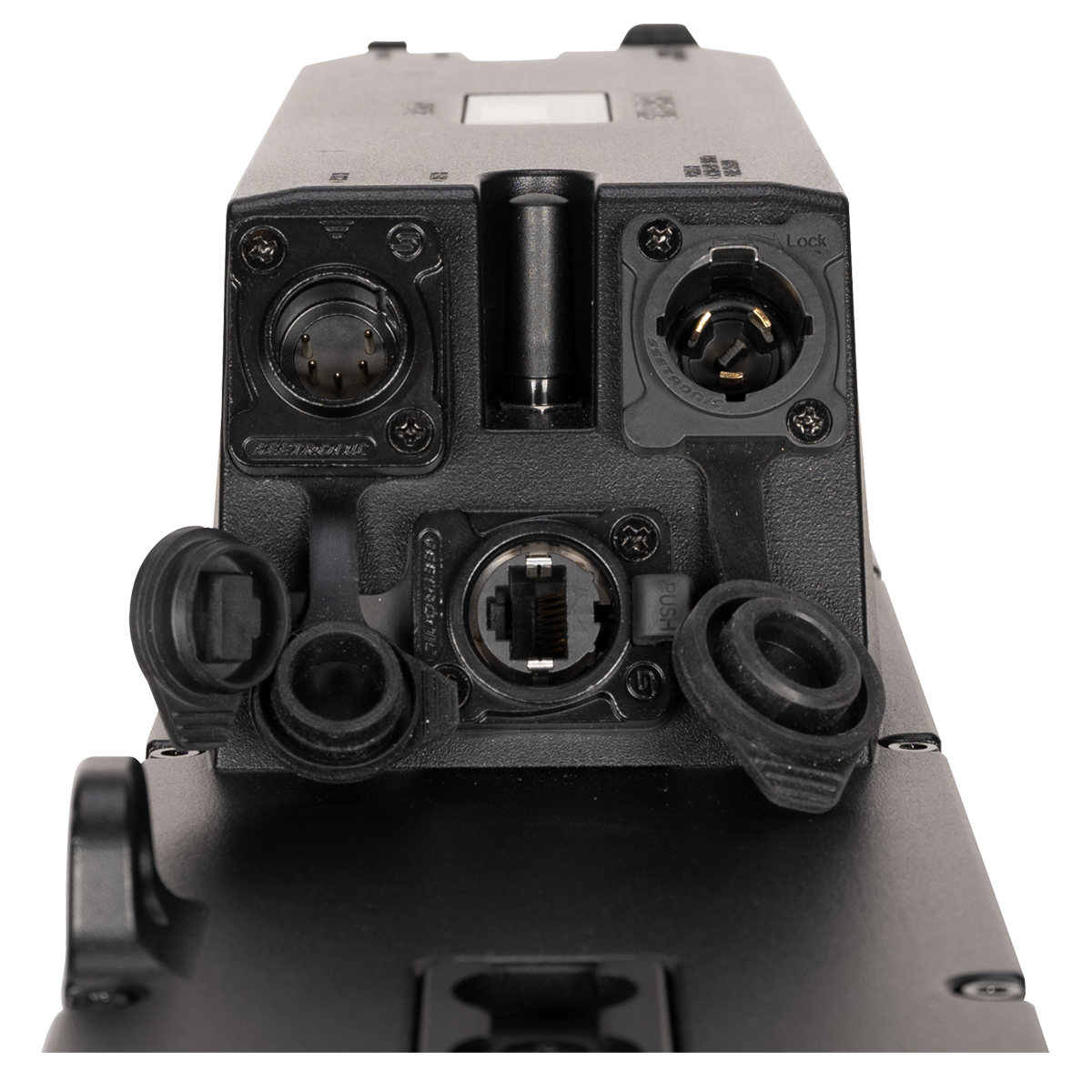

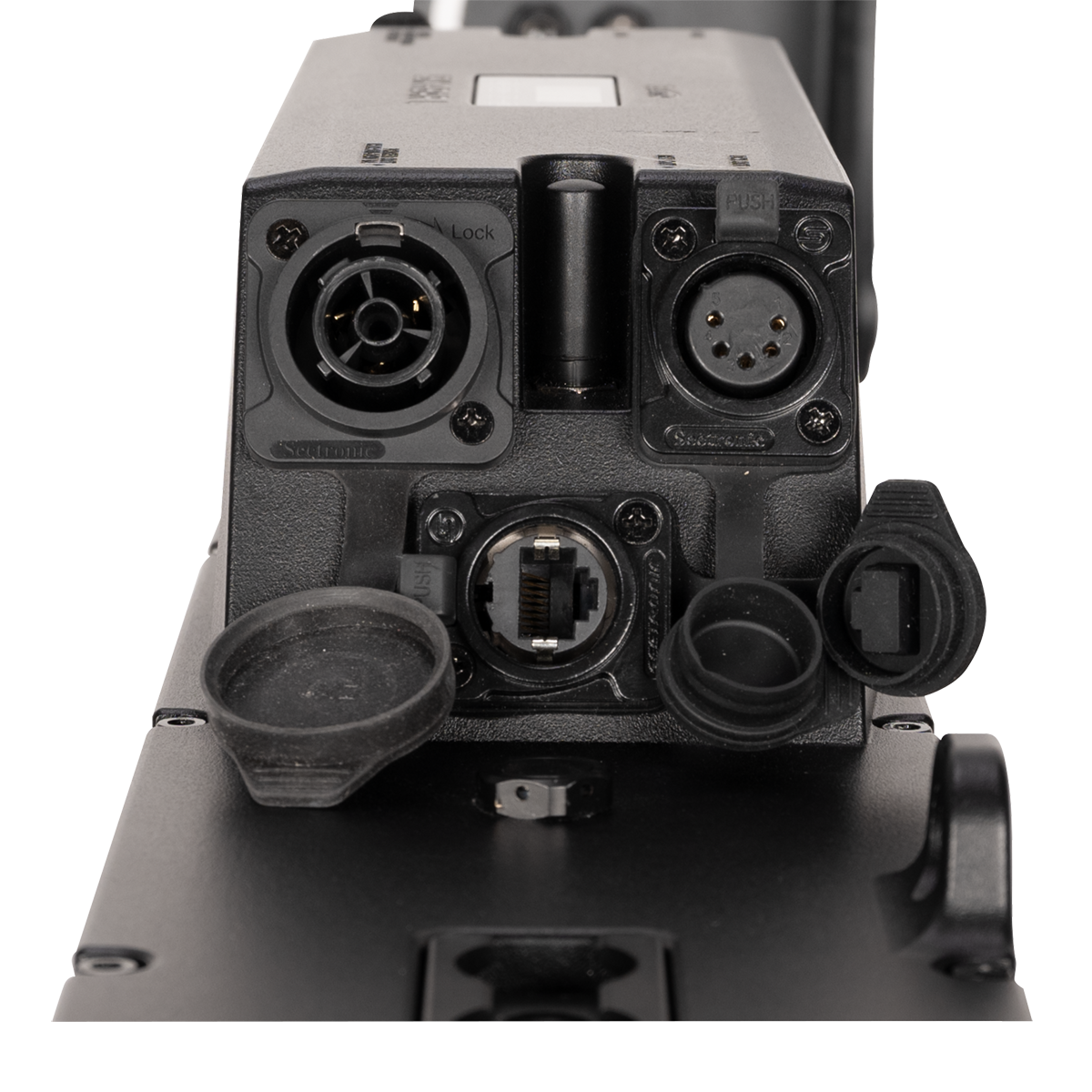

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN,
KlingNet)
IP65 Locking Power Cable In/Out

SIZE / WEIGHT
Length: 39.4” (1000mm)
Width: 6.9” (175.5mm)
Height: 8.11” (206.4mm)
Weight: 24.0 lbs / 10.9kg
