Product Features
Compact amplifier which offers full output power across a range of loads with 2 x 60 W into 8, 4 or 2 Ohms
Comprehensive on-board DSP with loudspeaker processing and innovative features which enhance performance and simplifies system design and commissioning
Configuration software wizard for initial set-up and advanced editor for preset configuration (LUCIA connection via USB) available for Windows and Mac
Energy efficient with Energy Star certification for supreme green credentials and exceptionally low lifetime running costs
Automatic Dynamic Loudness Contouring adapts to optimize performance at any output level
Comprehensive DSP features with per-channel presets for high-pass filter, parametric EQ, multi-band compressor and look-ahead limiter
Optimized presets available for a wide range of loudspeaker models for fast configuration
Enhanced Bass Profile for extended LF response with small loudspeakers
Proprietary Auto Load Sense automatically sets VPL (Voltage Peak Limiter) for optimum performance with any connected load
Efficient Class-D amplifier with low distortion and minimal heat dissipation
Compact form factor in a half-rack, 1U chassis with supplied bracket for discreet on-wall mounting
Configurable GPIO port for remote control (e.g. wall panel) for channel switching, level control and integration with paging systems
Comprehensive circuit protection for fail safe operation, including short circuit, thermal and under-voltage protection
Universal power supply supports 100 - 240 V AC at 50 or 60 Hz
Intelligent fan control for silent operation at idle and at lower output levels

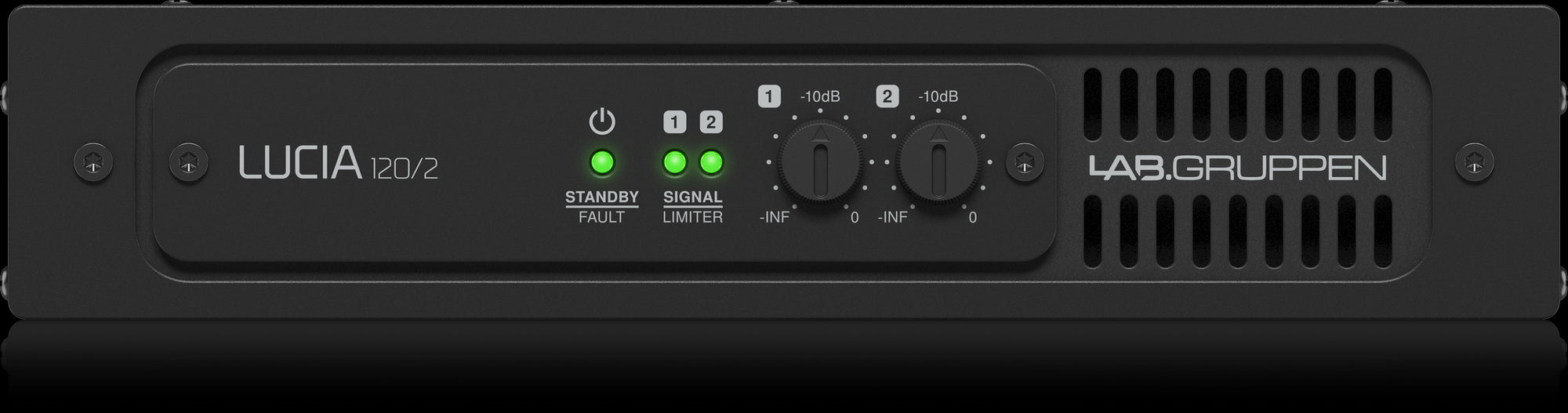

Front panel power and fault indication as well as per-channel signal LED and attenuation knob

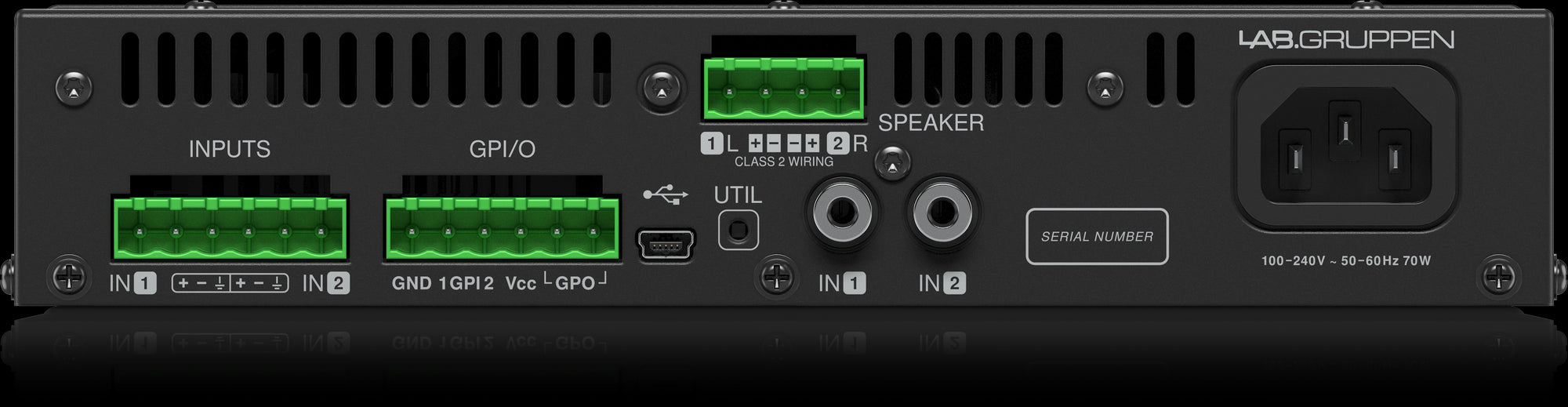

Balanced high quality analog inputs and amplifier outputs on detachable screw terminals
Parallel analogue input on unbalanced RCA connectors with optimized gain for mobile and other unbalanced sources
Rackmount kit, pole-mount kit and wall panel kits available as accessories
Specification
General
| Number of amplifier channels | 2 |
| Max total output all channels driven | 120 W |
| Max output voltage per channel | 31 V peak |
| Max output current per channel | 5.5 Arms |
Max output power (all channels driven)
| 2 ohms | 60 W |
| 4 ohms | 60 W |
| 8 ohms | 60 W |
| 16 ohms | 30 W |
Performance
| THD 20 Hz - 20 kHz at 1 W into 8 ohms | <0.3% |
| THD at 1 kHz and 1 dB below clipping | <0.2% |
| Signal to Noise Ratio | >98 dBA |
| Channel separation (Crosstalk) at 1 kHz | >60 dBA |
| Frequency Response | 5 Hz - 22 kHz |
| Input impedance | 10 kOhm |
| Common Mode Rejection (CMR) | 40 dB |
Gain, Sensitivity and Limiters
| VPL for 16 ohm mode | 31 Vpeak |
| VPL for 8 ohm mode | 31 Vpeak |
| VPL for 4 ohm mode | 22 Vpeak |
| VPL for 2 ohm mode | 15 Vpeak |
| Sensitivity, balanced input | 4 dBu / 1.23 Vrms |
| Sensitivity, RCA input | -2 dBu / 0.62 Vrms |
| Input headroom for clip, balanced 1 | 12 dBu / 3.09 Vrms |
| Input headroom for clip, RCA 1 | 6 dBu / 1.55 Vrms |
Connectors and Buttons
| Input connectors (per ch.) | 3 - pin detachable screw terminals, electronically balanced |
| Input connectors (ch. 1 & 2) | Unbalanced RCA type |
| Output connectors (per ch.) | 2 - pin detachable screw terminals |
| GPI (power control input) 2 | 2 channels of voltage sense type. 4 pins in a detachable screw terminal. Default for gain. |
| GPO (power state output) 2 | Contact closure type, 2 pins in a detachable screw terminal Default for external monitoring of fault/protection/power off |
| RS232 | Can be controlled and monitored by third parties via RS232 using both the GPI pins |
| USB | For firmware update and configuration with the Application Browser software |
| Level adjustment (per channel) | Front panel potentiometer, detented from -inf to 0 dB |
Processing Features
| Input processing block 3 | 4 EQ sections per input |
| Mix matrix routing block 3 | 2 in - 2 out mix-matrix controllable from GPI |
| Output processing block 3 | 4 EQ sections per output (presets available for many loudspeakers) User adjustable output look ahead limiter ADLC (Adaptive ISO 226 compensation) |
| Latency from any input to any output | User adjustable from 9.15 to 137 ms |
Power
| Nominal voltage | 100 – 240 VAC |
| Operating voltage | 85 – 265 VAC |
| Standby consumption | <1 W |
| Mains connector | IEC inlet |
| Cooling | One fan, no filter required, front to rear airflow, temperature controlled speed. Can stay off if the sustained power average stays below 2 × 6 W and the ambient temperature is below 25 C |
| Auto mode | The power state is controled automatically by the audio signal |
Dimensions
| Dimensions | W: 216 mm (8.5”), H: 44 mm (1 U), D: 280 mm (11”) |
Weight
| Weight | 1.9 kg (4.2 lbs) |
Finish
| Finish | Black aluminum front and black steel chassis |
Approvals
| Approvals | CE, CSA, CCC, PSE, FCC, Energy Star |
