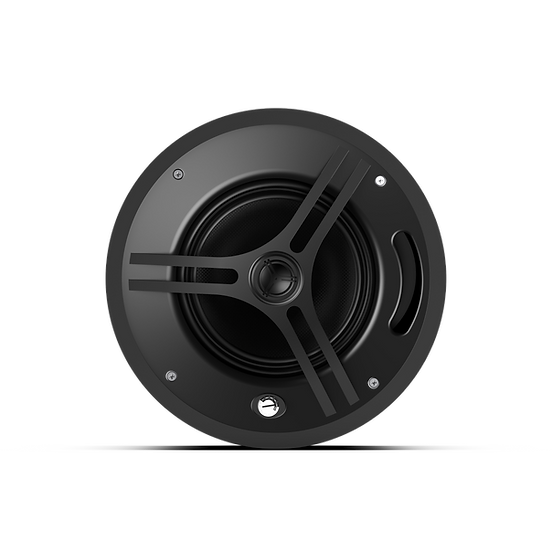

6" High-Performance Rimless Ceiling Speaker
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 80 Hz - 20 kHz
• Freq. Range (-10 dB) : 59 Hz - 20 kHz
• Rated Power : 150W AES, 500W Peak
• Dispersion : 120° conical
• Crossover : 1.9 kHz {assive
• Nominal Impedance : 8 Ω
• Max Output : 113 dB
• 100V/70V Transformer Taps : 80W, 40W,
20W, 10W, 5W
SYSTEM SPECIFICATIONS
• Recommended System Control : Can be used
without DSP or with the PW-Six DSP for
voicing & tonal benefits
• Recommended Subwoofers : See Systems
chart for compitable subwoofer
• Recommended Amplifiers : See Amplifier
load calculation chart

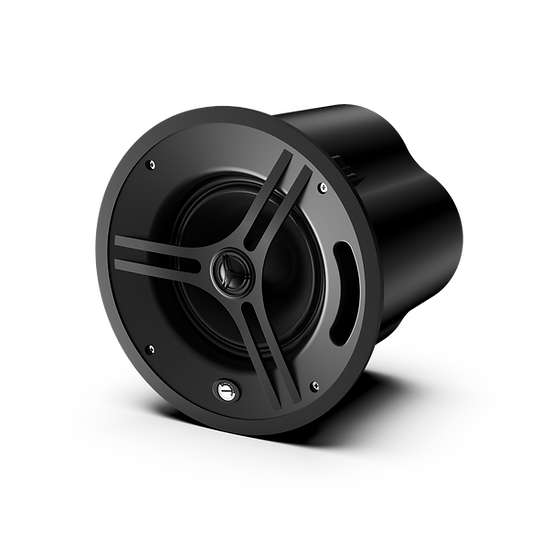

CO-AXIAL TRANSDUCER
• LF : V6L-25 Vero Drivers
• 125W AES, 500W Peak
• 1" Voice Coil - Ferrite Magnet
• 6" Mid-High Frequency
• Vero Design Material Science for
unique & optimised cone material
• Large Slotted Ports for better performacne
in the lower frequency range
• HF : V6H-25 Vero HF Transducers, 1" Exit
• 15W AES, 60W Peak
• 0.75" Voice Coil - Ferrite Magnet

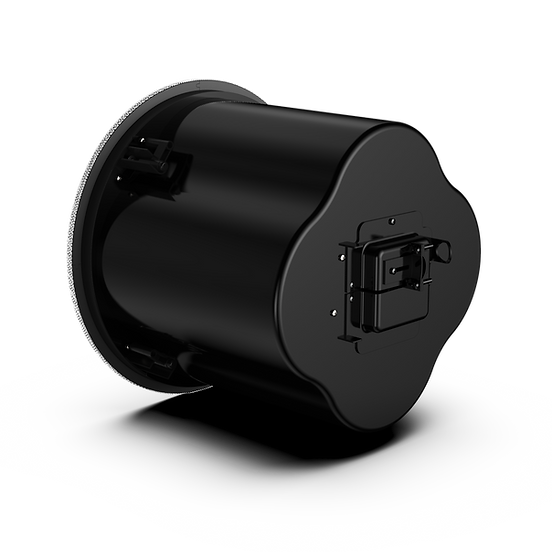

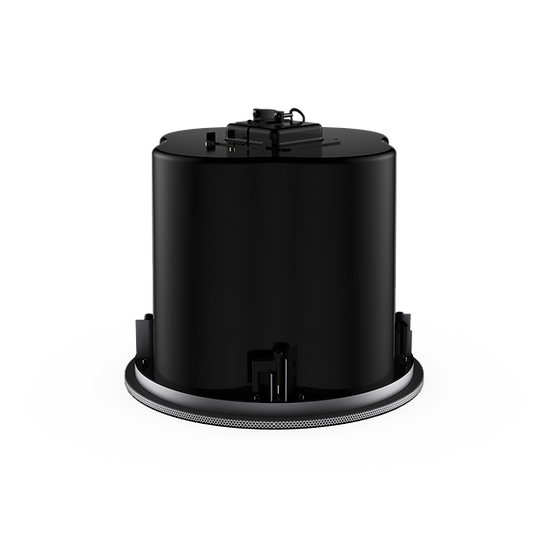

HOUSING
• Impact Resistant ABS with UV Stabilisers
• Silver Body, Fricton painted

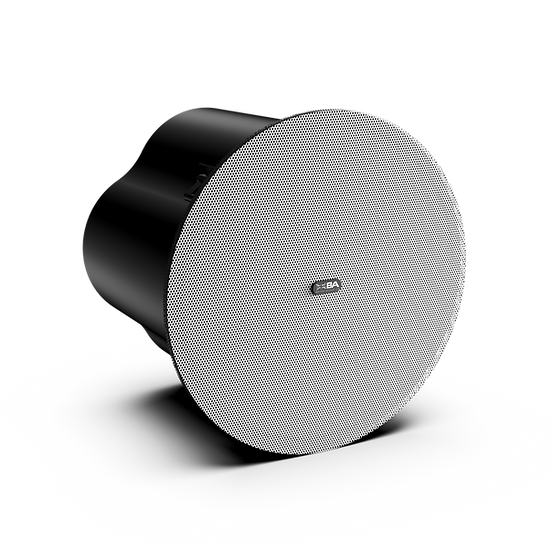

• White & Black Rimless Grills available
• Quickfit recess locking mechanism
• Fully Sealed Enclosure for better bass
response
• Quickfit recess locking mechanism
• Terra Locks for external mounts
OPERATING PARAMETERS
• Operating Positions : Must be Flush
Mounted as per the manual into the ceiling
or used with the pendant accessory
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -20° C (-4° F)
IP SPECIFICATIONS
• Standard Version : IP 42 - Offers basic
protection against dust & splashes
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 127 x 152.4 x 152.4 mm (H x W x D)
• Product : 5 x 6 x 6 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 2.9 kgs
• Net : 6.4 Lbs
SHIPPING INFORMATION
• Carton SIze
202 x 227 x 227 mm (H x W x D)
8 x 8.93 x 8.93 inch (H x W x D)
• Gross Weight : 3.045 Kgs / 6.714 Lbs
• Packed : individually
