INPUT CHANNELS

• 12 input channels
• 8 Mic/Line XLR inputs (ΚΩ)
• 2 Stereo line TRS Jack inputs (10k Ω)
• USB audio playback & recording
• wireless media input

OUTPUT CHANNELS

• 1 stereo out -L/R(752)
• 4 group outputs (1500)
• 3 Aux outputs (750)
• 1 Phones output (1502)


BUS

• 8 Bus mixer
• 1 stereo bus -LR
• 4 Groups
• 3 Auxes

INPUT STRIP

• Dedicated input metering
• plus48V phantom power/channel
• 20dB pad • 3-band input EQ
• Aux/Fx sends
• L/R panning peak/solo PFL
• Group selection


FX & FEATURES

• Class-A PSL Preamps
• Oliver FX Engine with built in preset library
• Individual return channels for both FX1 & FX2
• Iphone, Android, PC & Mac Sound card compatibility
• 7 band Stereo graphic EQ

THD+N

• 0.03% total harmonic distortion full bandwidth
• 30 dB Gain, Mic input to L/R
• 0.015% total harmonic distortion full bandwidth
• 0 dB Gain, Mic Input to L/R
• 0.04% total harmonic distortion, full bandwidth
• 30 dB gain, line input to L/R

NOISE LEVELS

• -70 dB Crosstalk at 1kHz
• -90 dB Signal-to-noise ratio, All channels routed


USB SOUND CARD

• A to D conversion, 24-bit @109 dB dynamic range
• D to A conversion, 24-bit @ 113dB dynamic range
• Sample Rate 44 kHz

POWER REQUIREMENTS

• AC 110V-240V, 50-60Hz
• IEC input power cable (included)
• Internal universal power supply
• 78W Max power consumption

OPERATING PARAMETERS

• Maximum permitted ambient temperature (Ta max) 45°C (113°F)
• Minimum permitted ambient temperature temperature (Ta min)-10°C (14°F)
• Desktop use only, cannot be racked mounted

AESTHETICS

• Mixer skeleton made of aluminium and steel metal plates
• Moulded exteriors in class VO rugged ABS
• 100mm Tex-Touch Faders
• Contour Sensitive Rotary knobs
• IP 20 Protection rating
• Exterior Finish, Porus state grey


PRODUCT SIZE

• Product: 203.2 x 469.9 x 514.35 mm (hxwx d)
• Product: 6 x 18.5 x 20.25 inch (hxwxd)
• Packed individually

WEIGHT

• Net Kgs-7.49 Kgs
• Net Lbs-16.51 Lbs

SHIPPING SIZE

• Product: 615.95 x 571.5 x 241.3 mm (hxwx d)
• Product: 24.25 x 22.5 x 9.5 inch (hxwxd)
• Packed individually

WEIGHT

• Gross Kgs-9.51 Kgs
• Gross Lbs-20.96 Lbs

PRODUCT INFORMATION

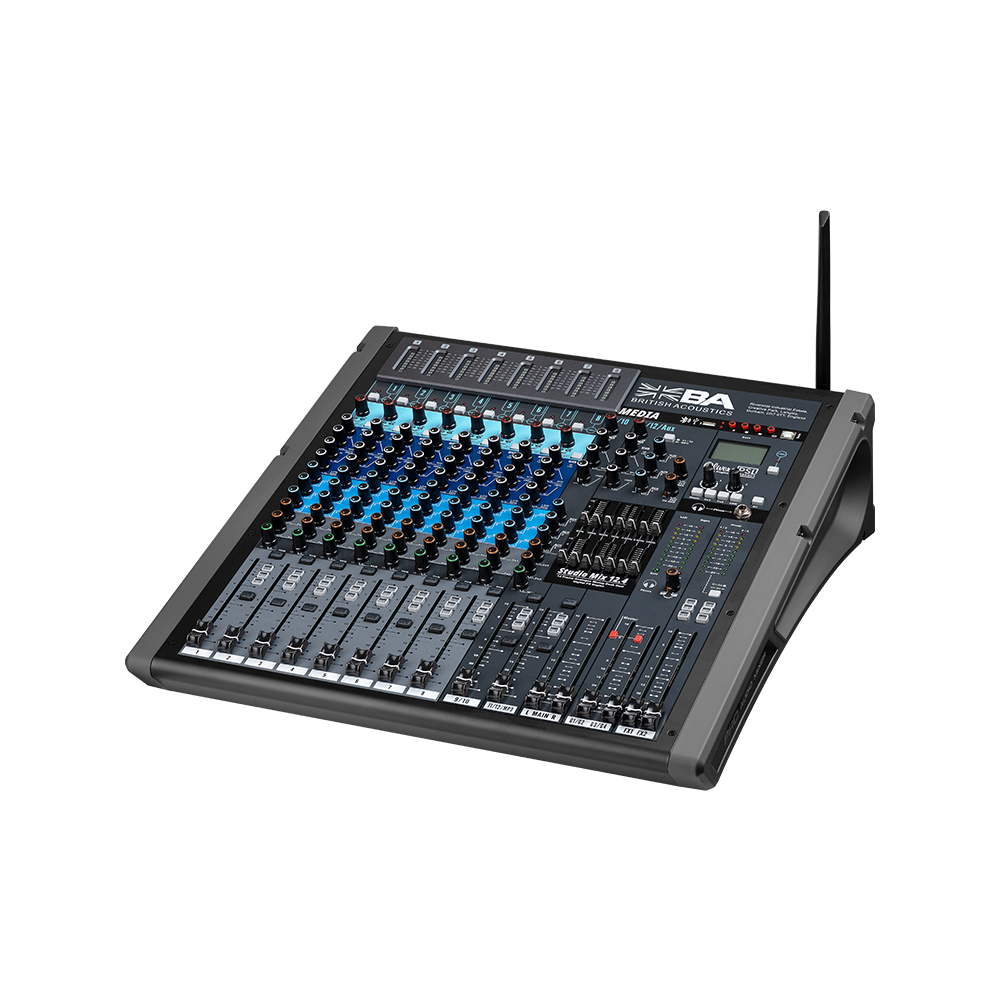

• Model No: Studio Mix 12.4 DFX
• Series Electronics
• Tags: 08 Frame Compact Analogue Mixing Desk with Dual FX

OPTIONAL ACCESSORIES

• PC 32FC: Travel Case
