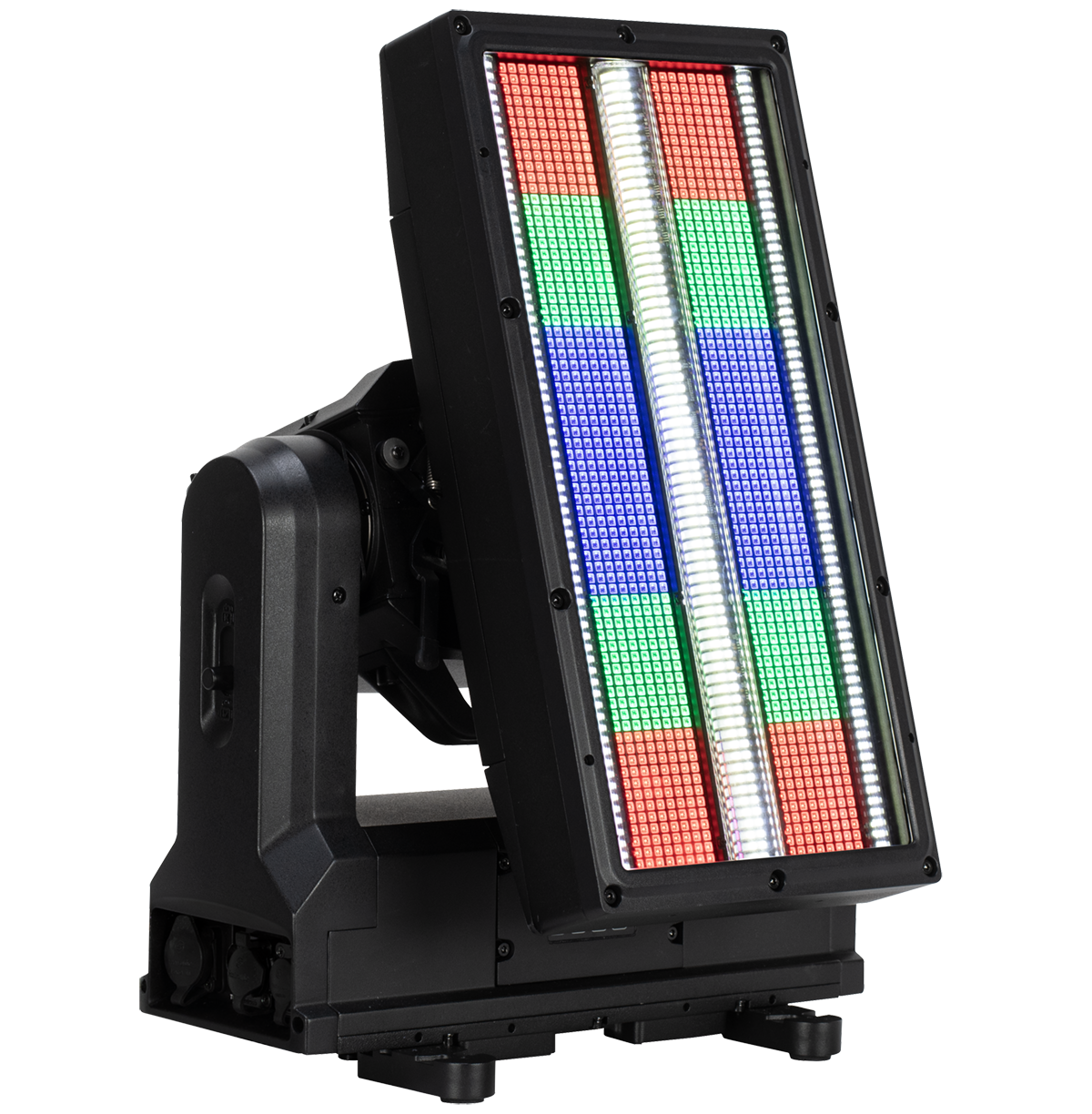

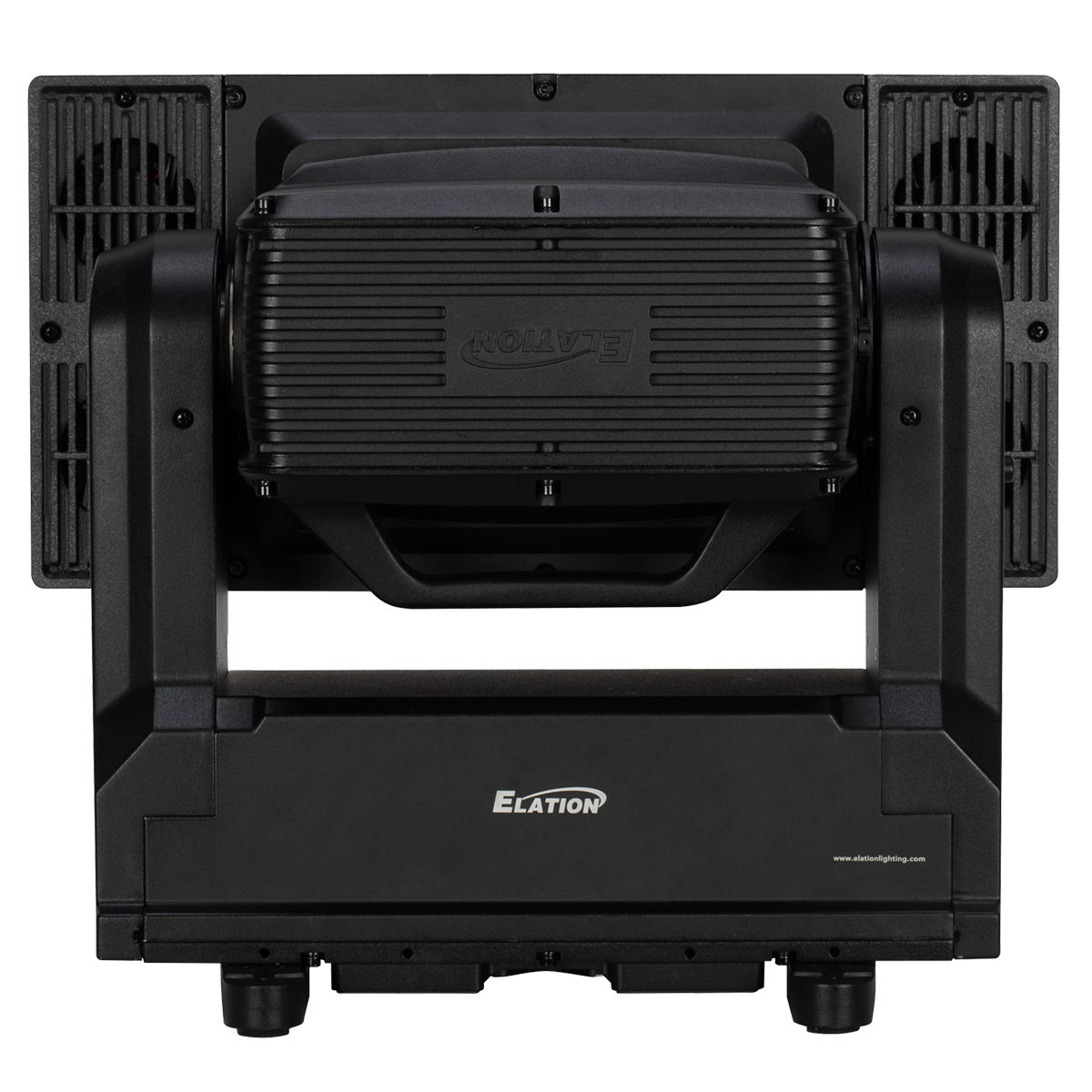

The PULSE PANEL FX boasts an array of 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter,
arranged in a grid of 6 zones wide and 4 zones tall. In addition to this, it includes a central strobe line
comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall. These
are separated by a line of 96 1.5W RGB LEDs divided into 12 zones. Furthermore, there are 144 additional
5W cool-white LEDs divided into 24 zones, with 12 zones at the top and 12 at the bottom of the fixture’s
face. These outer LEDs utilize a linear prismatic lens similar to those used in our Rayzor Blade fixtures.
When combined, these components deliver an astonishing output exceeding 100,000 total lumens.
With fully variable color temperature adjustment (2400K - 8500K) and a virtual gel library, designers have
immediate access to a diverse LED color array. The PULSE PANEL FX also includes a library of customizable
RGB and CW strobe effects along with variable dimming modes and curves for quick programming. Cloning
the PULSE PANEL FX is easy with the numerous control modes, and the ability to mirror control of the
external strobe lines and center RGB strobe line via DMX control channel, or the menu. The unit also offers
the ability to disable the pan/spin motor if that effect is not desired.
Controlled via DMX, RDM, Art-Net, sACN, and KlingNet protocols, the PULSE PANEL FX allows for the use
of two separate universes to control the device, one for the fixture movement and another for the LED
control. Allowing users to control the LEDs from a media server or separate content control device. It also
features proprietary Aria x2 wireless device management for simplified system setup and maintenance.
KEY FEATURES
(1152) 1.5W RGB LED’s in 24 Zones
(432) 5W CW Strobe LED’s in 48 Zones
(96) 1.5W RGB StrobeLine LED’s in 12 Zones
Fast and Continuous 360° Pan/Spin and 180° Tilt
Art-Net, sACN and KlingNet Support
IP65 Rated

SOURCE
(1248) 1.5W RGB LEDs
(432) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including
but not limited to: Environmental Conditions, Power/Voltage, Usage
Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
 All LED: 78,265 Lumens
 CW LED: 108,574 Lumens
 RGB LED: 44,090 Lumens
CRI: >70
Beam Angle: 68°
Field Angle: 112°
EFFECTS
24 Zones of RGB Plate LEDs (6 x 4)
48 Zones of CW Strobe LEDs (12 x 4)
12 Zones of RGB StrobeLine LED’s (12 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe
Effects
Variable Dimming Modes and Curves
Pan/Spin Angle: 540°/360°
360° Continuous Pan/Spin Movement
Tilt Angle: 180°
Setting to Lock Pan/Spin Movement
COLOR
RGB Color Array
CONTROL / CONNECTIONS
12 DMX Channel Modes (8ch, 16ch, 27ch,
50ch, 62ch, 65ch, 175ch, 90ch, 93ch, 183ch,
161ch, 156ch)
Ability to Address Fixture Control and LED
Control to Separate Universes
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN,
KlingNet)
IP65 Locking Power Cable In
SIZE / WEIGHT
Length: 8.28” (210mm)
Width: 16.54” (420mm)
Vertical Height: 15.59” (396mm)
Center-to-Center: 20.47” (520mm)
Weight: 38.58 lbs. (17.5kg)
