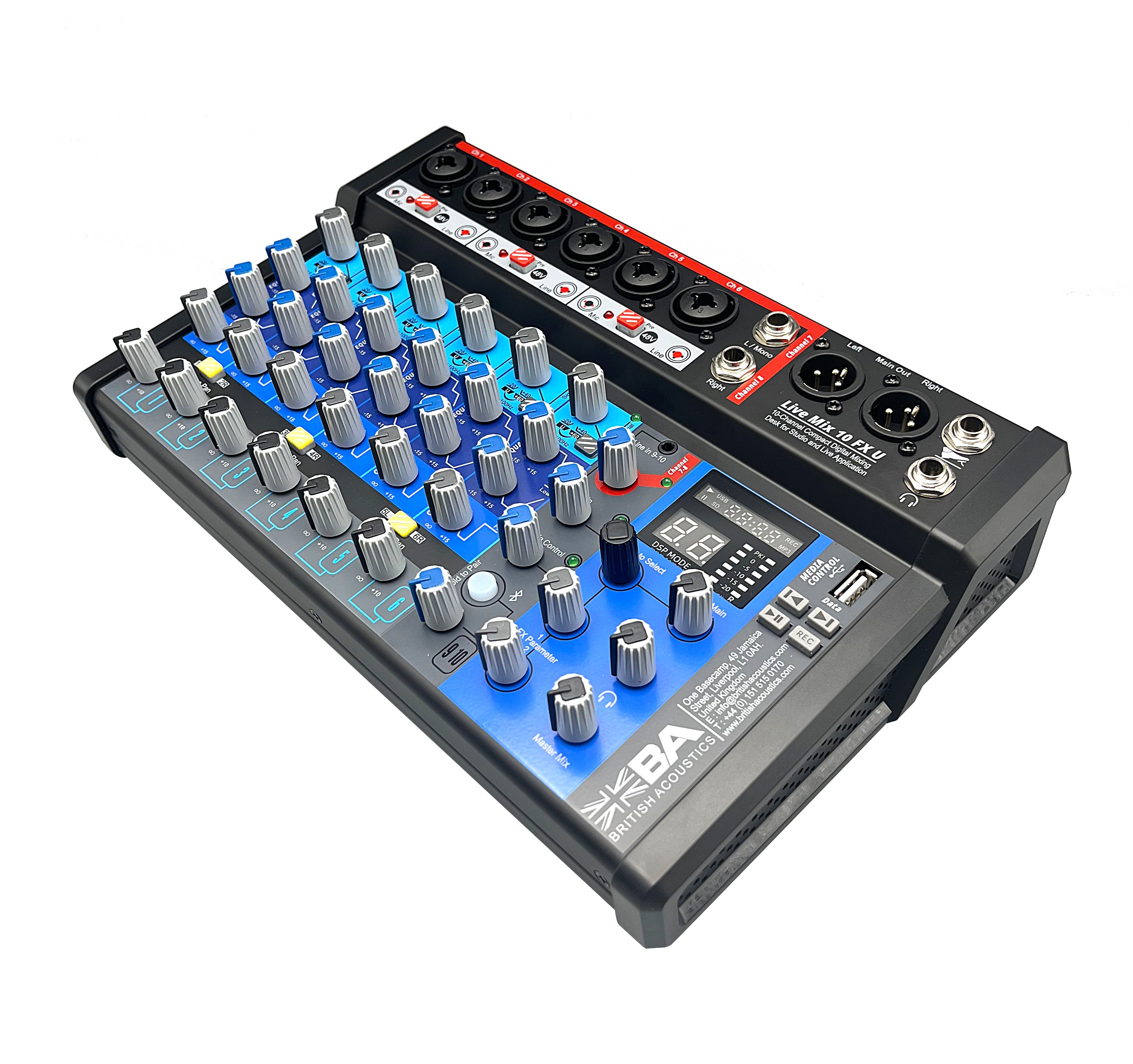

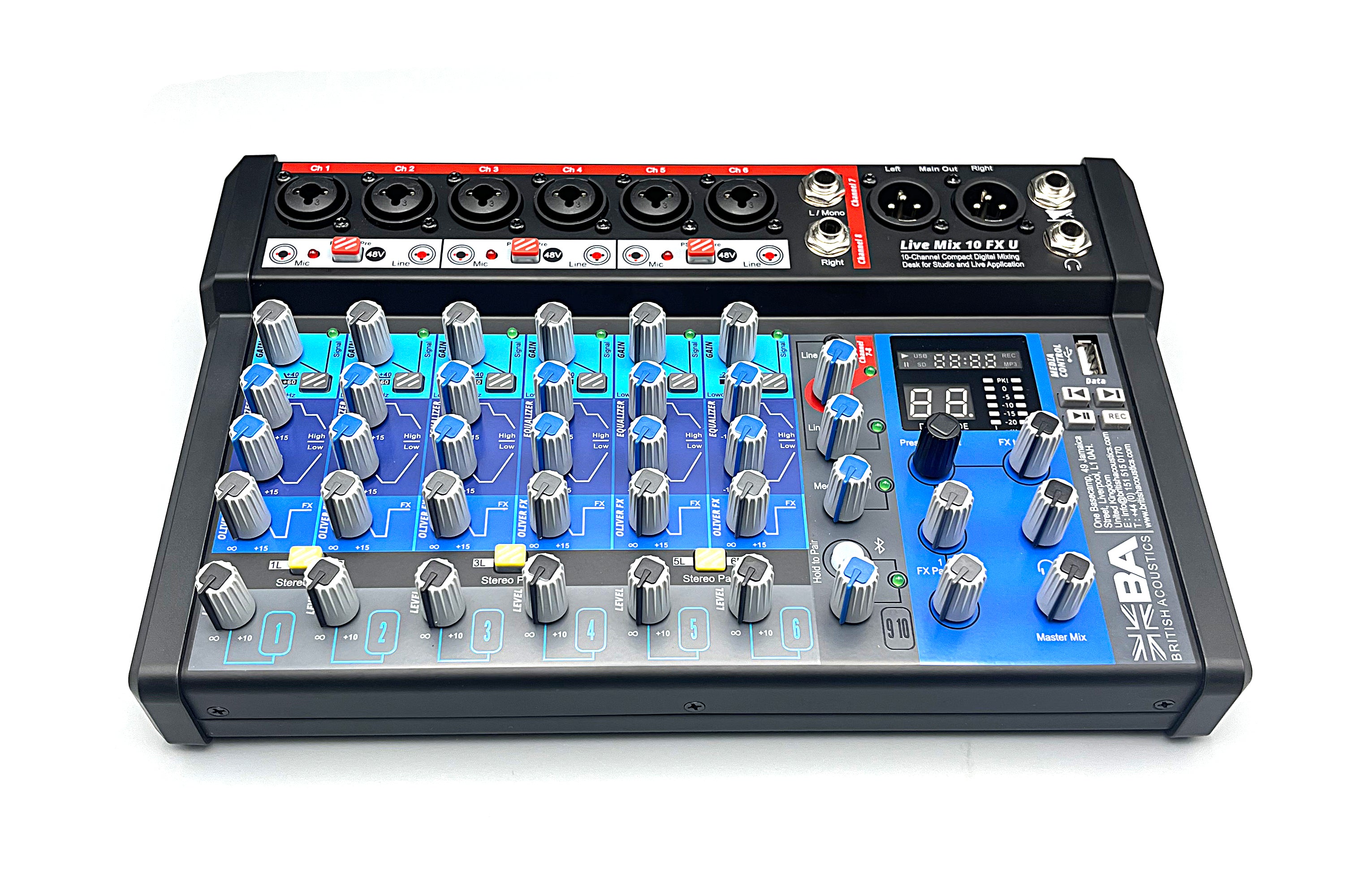

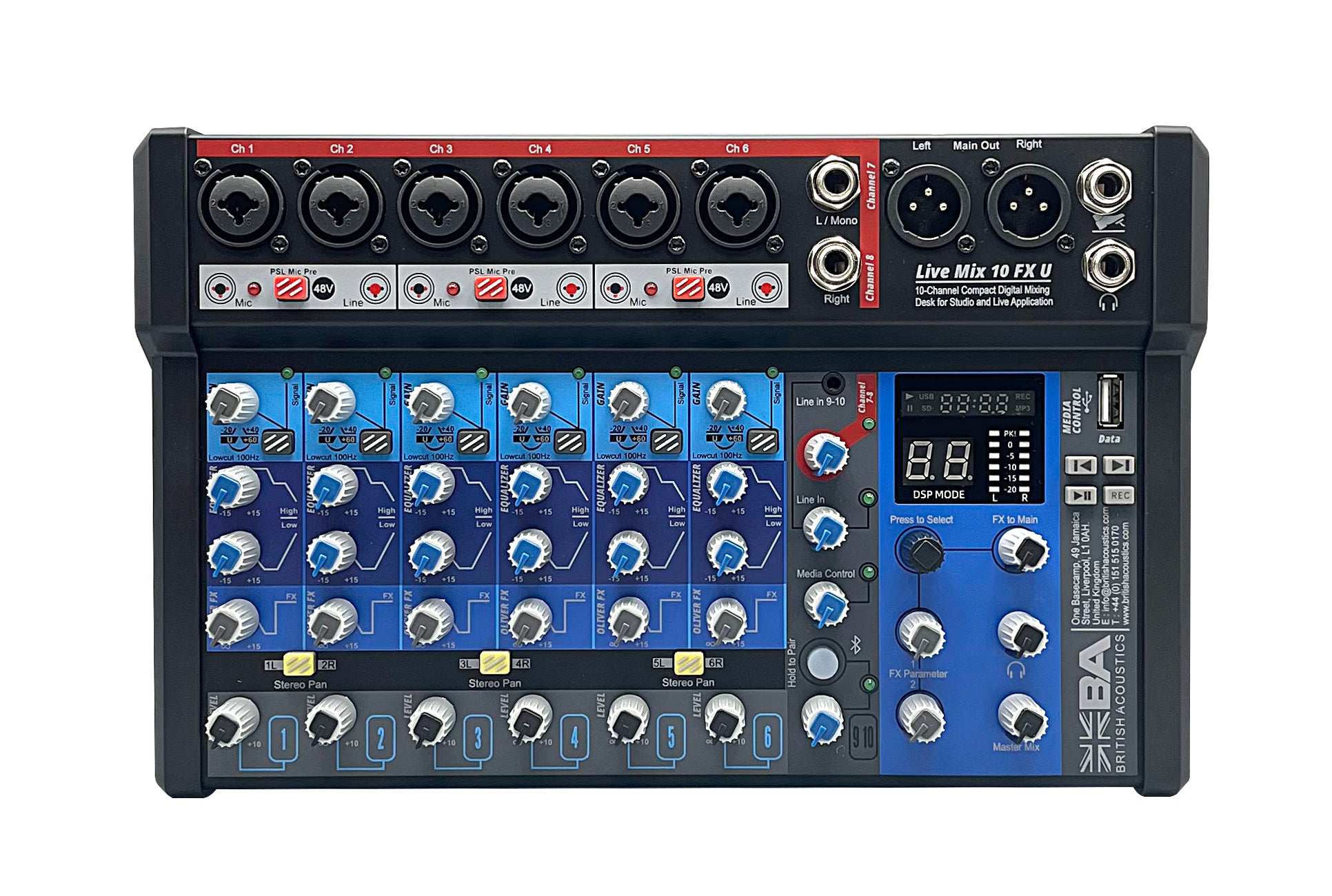

10 Channel Compact Analogue Mixing Desk With Dual FX
TECHNICAL SPECIFICATIONS
INPUT CHANNELS
• 10 input channels
• 6 Mic/Line XLR inputs (kΩ)
• 2 Stereo line inputs (10k Ω)
• Foot Switch
• USB audio playback & recording
• Wireless media input
OUTPUT CHANNELS
• 1 stereo out - L/R(75Ω)
• 1 Phones output (150Ω)
BUS
• 1 stereo bus -LR
INPUT STRIP
• plus48V phantom power
• 3-band input EQ
• Fx sends
• Stereo Pan Selection on CH 1/2
FX & FEATURES
• Class-C PSL Preamps
• Oliver FX Engine with built in preset library
• Individual return channels for both FX1 &
FX2
• Iphone, Android, PC & Mac Sound card
compatibility
THD+N
• 0.03% total harmonic distrortion full
bandwidth
• Input CMRR > 60 dB
• 30 dB Gain, Mic input to L/R
• 0.015% total harmonic distortion full
bandwidth
• 0 dB Gain, Mic Input to L/R
• 0.04% total harmonic distortion, full
bandwidth
• 30 dB gain, line input to L/R
NOISE LEVELS
• -70 dB Crosstalk at 1kHz
• -90 dB Signal to noise ratio, All channels
routed
USB SOUND CARD
• A to D conversion , 24-bit @104 dB
dynamic range
• D to A conversion, 24-bit @ 107 dB
dynamic range
• Sample Rate 44 kHz
POWER REQUIREMENTS
• AC 110V-240V, 50-60Hz
• IEC input power cable (included)
• Internal universal power supply
• 20W Max power consumption

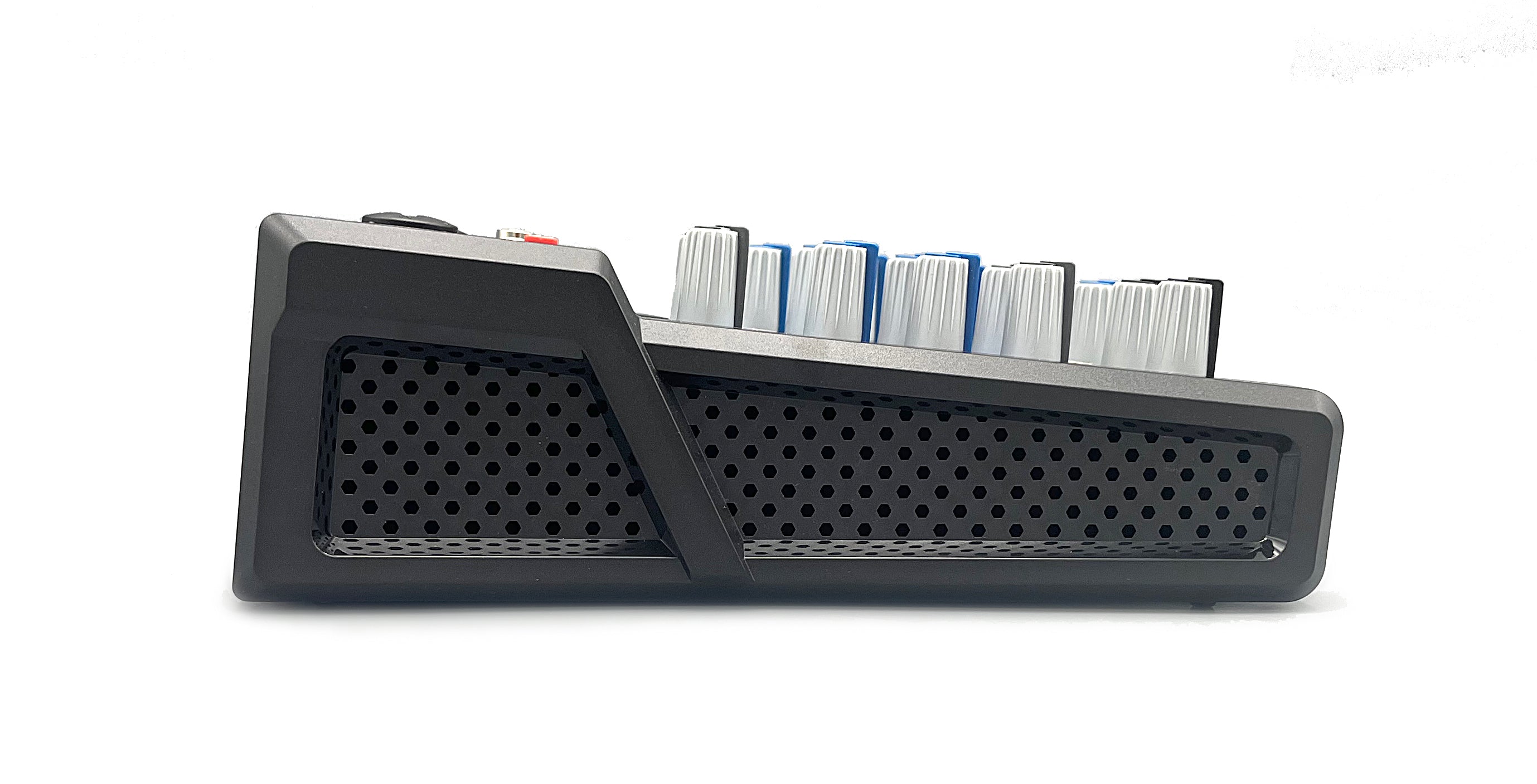

AESTHETICS
• Mixer skeleton made of aluminium and steel
metal plates
• Moulded exteriors in class V0 rugged ABS
• Contour Sensitive Rotary knobs
SIZE
• Product: 203 x 469 x 514 mm (H x W x D)
• Product: 6 x 18.5 x 20.25 inch (H x W x D)
• Packed individually
WEIGHT
• Net Kgs- 7.49
• Net Lbs - 16.
SHIPPING INFORMATION
• Carton Size
615.95 x 571.5 x 241.3 mm (H x W x D)
24.25 x 22.5 x 9.5 inch (H x W x D)
• Gross Weight : 9.51 Kgs / 20.97 Lbs
• Packed individually
