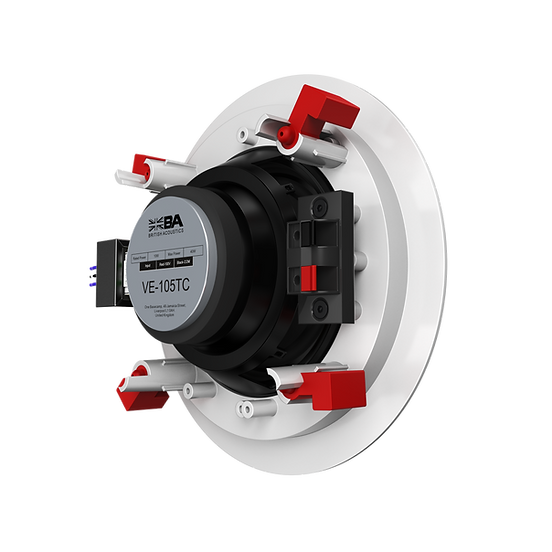

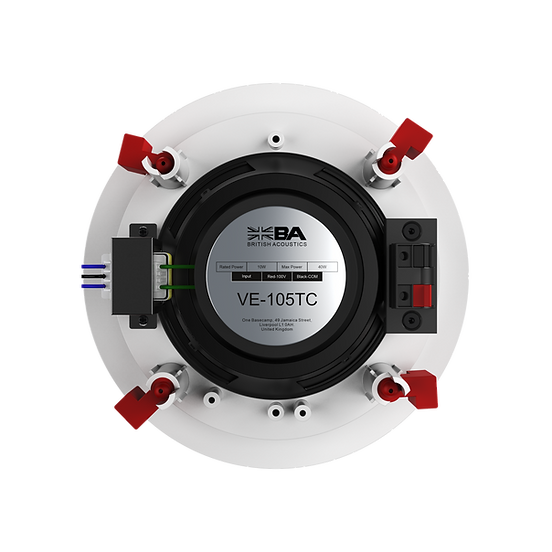

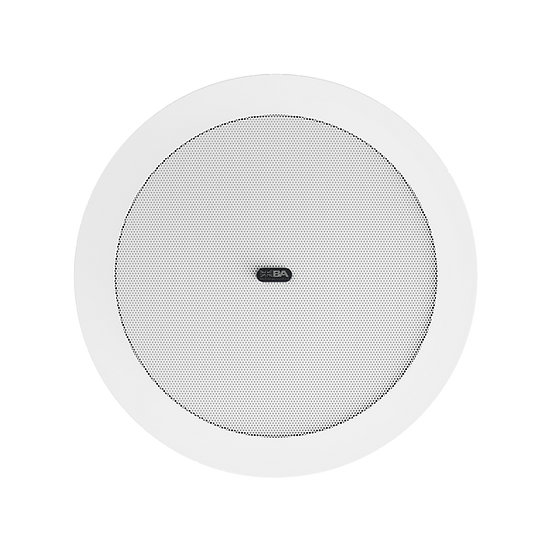

5.25" Full Range Ceiling Speaker
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 105 Hz - 20 kHz
• Freq. Range (-10 dB) : 60 Hz - 18 kHz
• Rated Power : 10W AES, 40W Peak
• H Dispersion : 130° conical
• Nominal Impedance : 8 Ω
• Max Output : 106 dB
• Fixed 10W Transformer Tap @ 100/70 V
SYSTEM SPECIFICATIONS
• Recommended System Control : Can be used
without DSP or with the PW-Six DSP for
voicing & tonal benefits
• Recommended Subwoofers : See Systems
chart for compitable subwoofer
• Recommended Amplifiers : See Amplifier
load calculation chart
LF TRANSDUCER
• 5.25" Full Range Shallow Driver
• 0.7" Voice Coil - Ferrite Magnet
• 10W AES, 40W Peak
• Durable & Sturdy Build for long lasting
performance
• Treated Paper Cones for better resistance
against dust, moisture or UV exposure
HOUSING
• Impact Resistant ABS with UV Stabilisers
• Bare Body, Ideal for shallow commercial
ceilings
• White Grills & matte white rims
• Quad-Fit Ceiling Lock
OPERATING PARAMETERS
• Operating Positions : Must be Flush
Mounted as per the manual into the ceiling
or used with the pendant accessory
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -20° C (-4° F)
IP SPECIFICATIONS
• Standard Version : IP 42 - Offers basic
protection against dust & splashes
SIZE
• Product : 94 x 172 x 172 mm (H x W x D)
• Product : 3.7 x 6.8 x 6.8 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 580 g
• Net : 1.27 Lbs"
SHIPPING INFORMATION
• Carton Size
169 x 247 x 247 inch (H x W x D)
6.65 x 9.7 x 9.7 mm (H x W x D)
• Gross Weight : 609 g / 639 Lbs
• Packed : Individually
