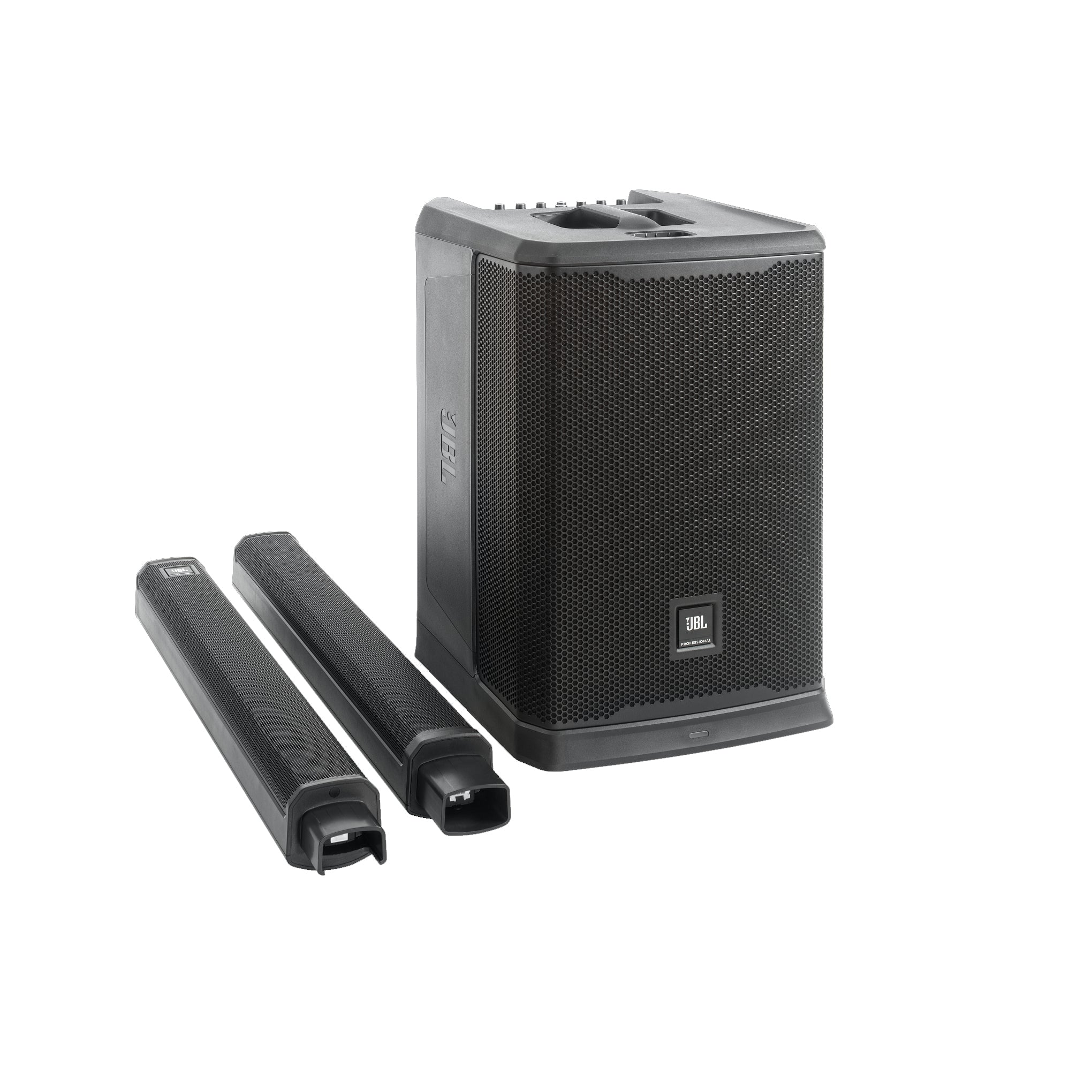

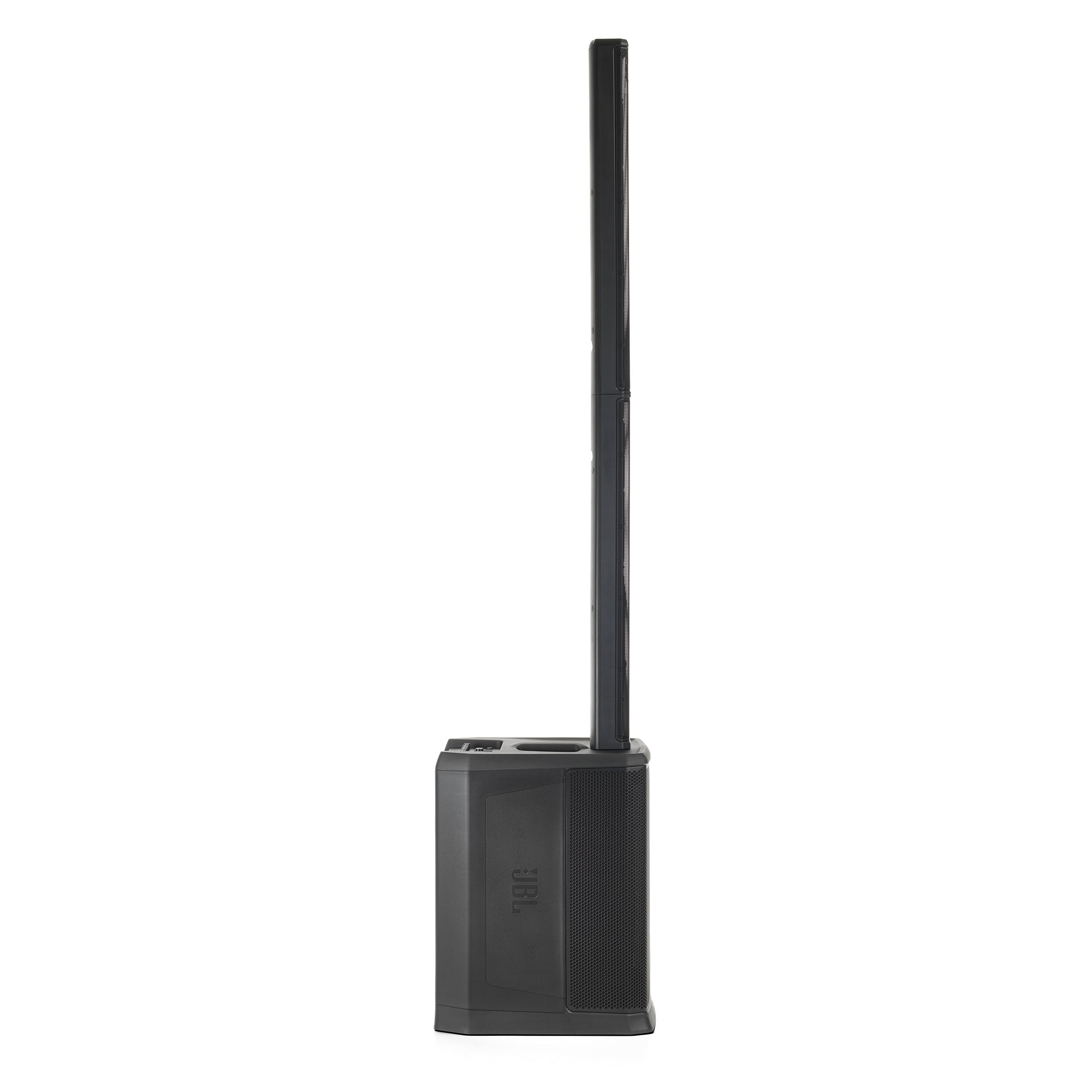

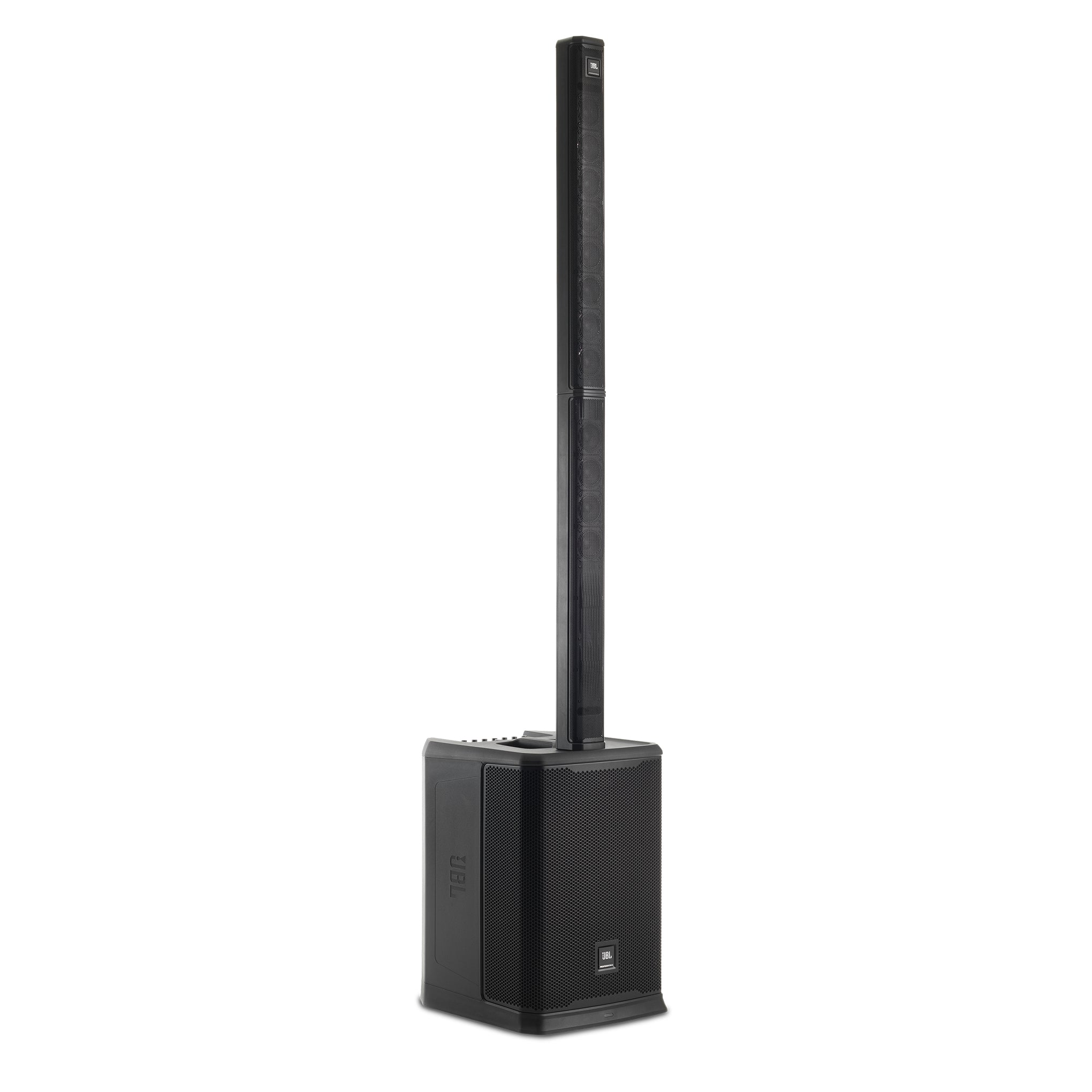

PRX ONE

A vertical array of 12 2.5-inch drivers delivers consistent, even HF response from the front of the room to the back
Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response
JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage
Wide, 130° (H) x 30° (V) dispersion pattern delivers consistent coverage across the audience area
Sophisticated crossover management and HF/LF coupling allow for a more natural low-end response and smooth, uniform response across the entire frequency range
12-inch bass-reflex woofer extends low-end response to 35 Hz
2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors provides clean, efficient system power, superior headroom, low THD, and protection from voltage spikes
Four high-efficiency, low-noise microphone preamps maintain constant bandwidth at any gain level
130 dB max SPL
Integrated 7-channel digital mixer with dual-operating mode gives users full control of their input faders or individual channel controls like bass, mid, treble, and effects sends.
Powerful Lexicon effects engine with delay, reverb chorus, echo and sub synth, with presets for easy setup
Triple Tier DSP control offers multi-level user experiences based on the knowledge level
dbx DriveRack Inside technology features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control
One-touch ducking by Soundcraft ensures speech is always heard
The simple, intuitive full-color LCD screen provides easy access to all PRX ONE functions
8 user presets instantly optimize system sound
Robust audio connectivity: I/Os include 4 XLR Combo, 2 Hi-Z, 1 1/8-inch/BT audio, and 1 XLR Pass-Thru
2 USB 2.0 ports charge devices and power AKG wireless systems (with optional JBL adapter cable)
Two channels of true +48V phantom power expand microphone support
Bluetooth 5.0 connectivity allows remote system control of up to 10 units using the JBL Pro Connect app
Full app control using JBL Pro Connect
Rugged enclosures withstand the rigors of the road
Optional bracket and adapter allow the array to be wall or truss-mounted independently of subwoofer for permanent installations
Computer-modeled ComfortGrip handle simplifies transport
Included nylon carrying bag for an array
Attractive, discreet form factor
Weight: 55.65 lbs (25.7 kg)

ALL-IN-ONE POWERED COLUMN PA WITH MIXER AND DSP

Features
