The PULSE BAR L includes a library of customizable RGB and CW strobe effects along with variable dimming
modes and curves for quick programming.
Wrapped in a durable, fully IP65-rated housing, the PULSE BAR L is suitable for any environment, indoors or
outdoors, and its Marine grade coating adds additional protection for harsher environments- even coastal
locations.
The fanless convection cooling of the PULSE BAR L guarantees silent operation, making it ideal for ? Noisesensitive environments. Designed for ultimate flexibility, an integrated accessory slot accommodates optional
diffusion filters, ND filters and other optics.

KEY FEATURES
(960) 1.5W RGB LED’s in 40 Zones
(400) 5W CW Strobe LED’s in 40 Zones
(160) 1.5W RGB StrobeLine LED’s in 20 Zones
Completely Fanless Cooling

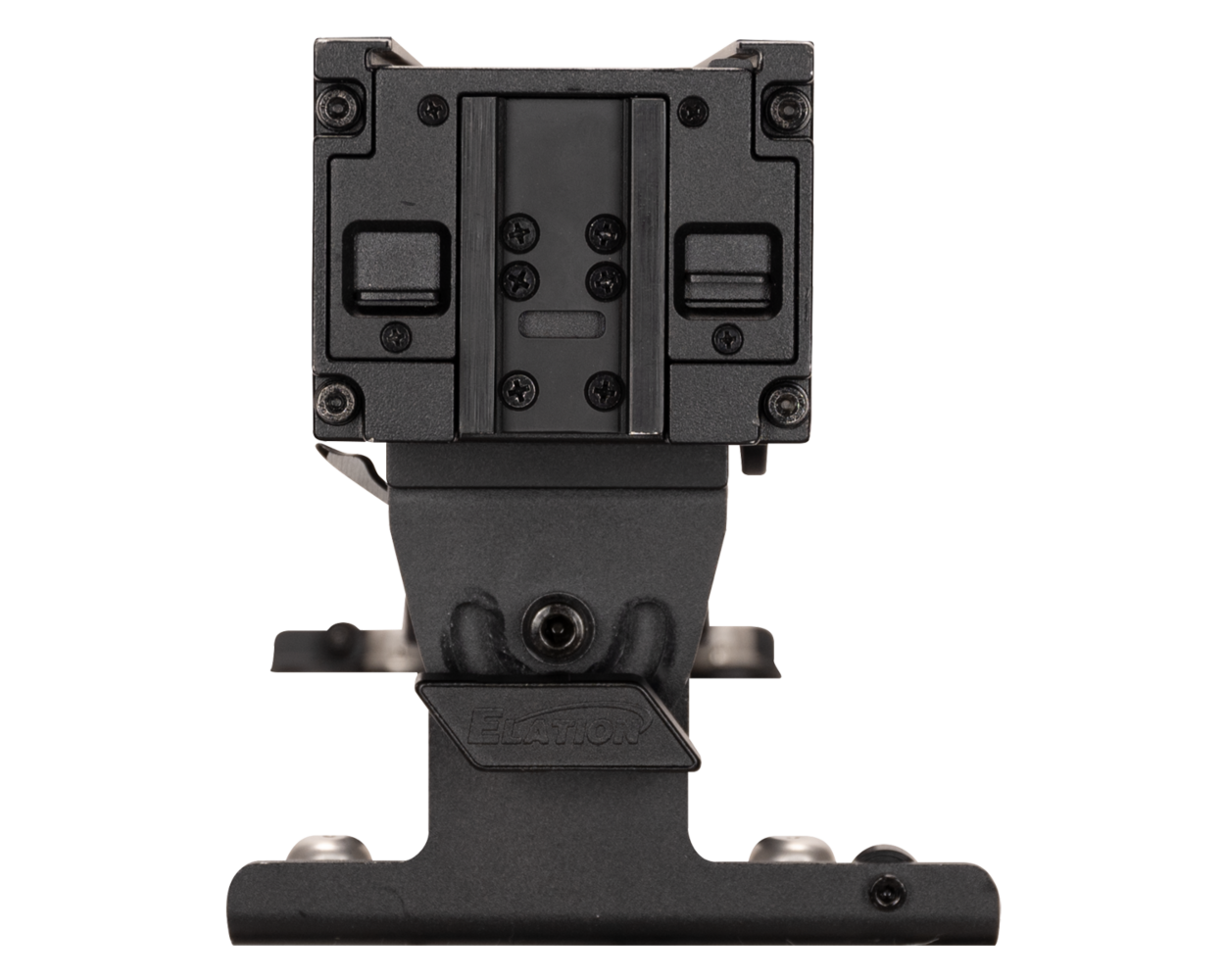

Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated

SOURCE
(1120) 1.5W RGB LEDs
(400) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including
but not limited to: Environmental Conditions, Power/Voltage, Usage
Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output
Integrating Sphere
All LED: 22,614 Lumens
CW LED: 25,191 Lumens
RGB LED: 8,434 Lumens
CRI: TBD
Beam Angle: TBD
Field Angle: TBD
EFFECTS
40 Zones of RGB Plate LEDs (20 x 2)
40 Zones of CW Strobe LEDs (20 x 2)
20 Zones of RGB StrobeLine LED’s (20 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe
Effects
Variable Dimming Modes and Curves
COLOR
RGB Color Array

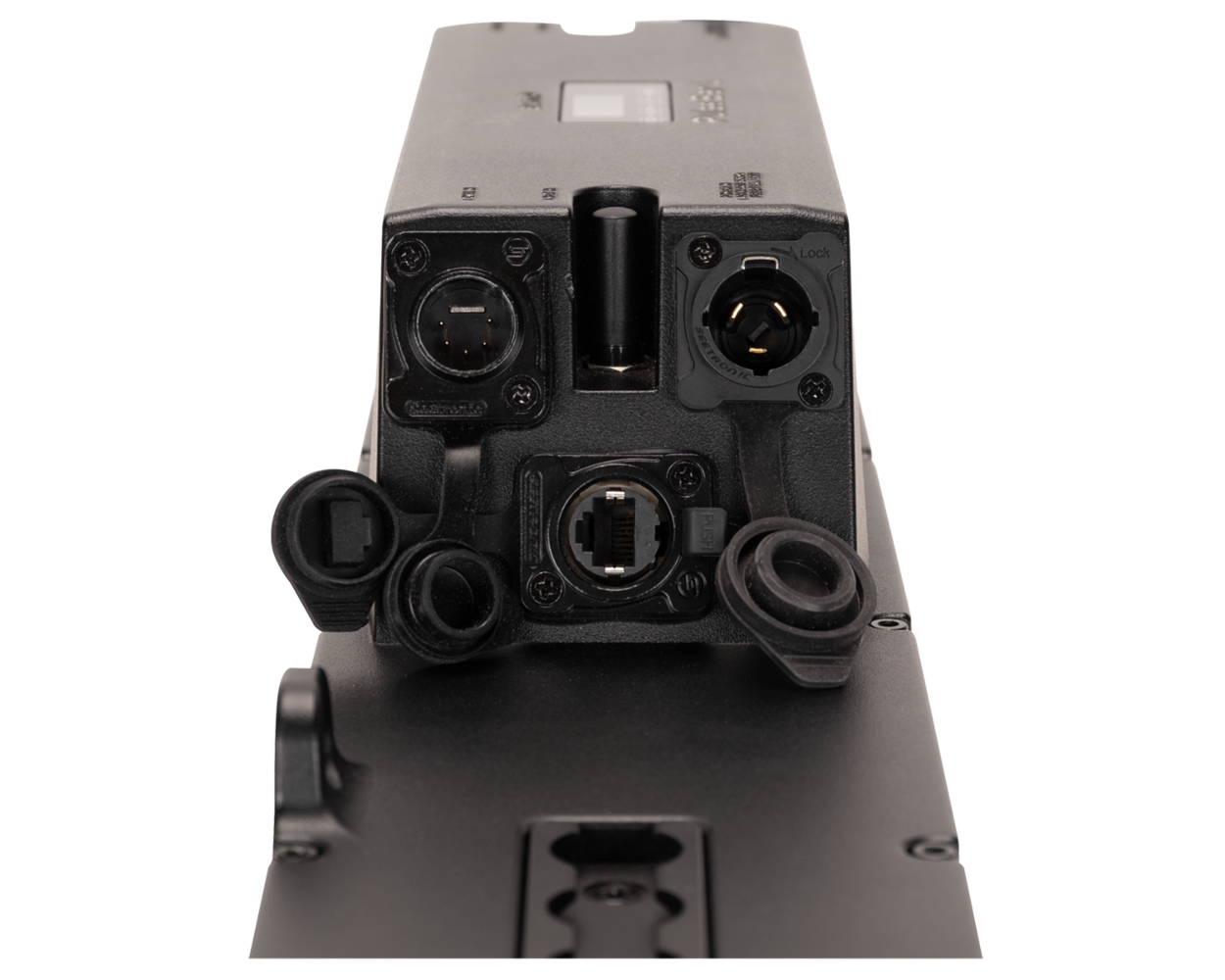

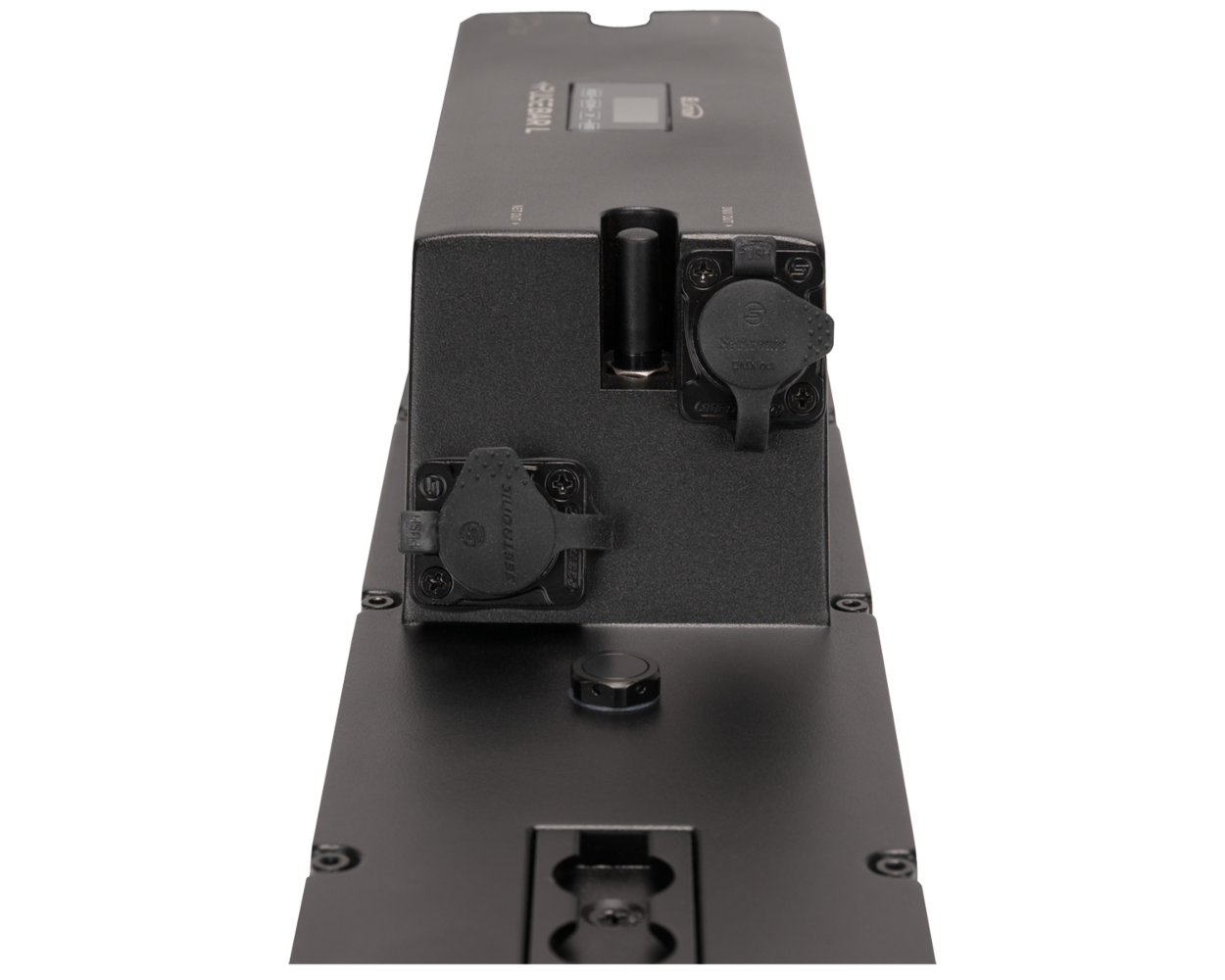

CONTROL / CONNECTIONS
9 DMX Channel Modes (3ch, 11ch, 22ch, 52ch,
92ch, 234ch, 132ch, 242ch, 220ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

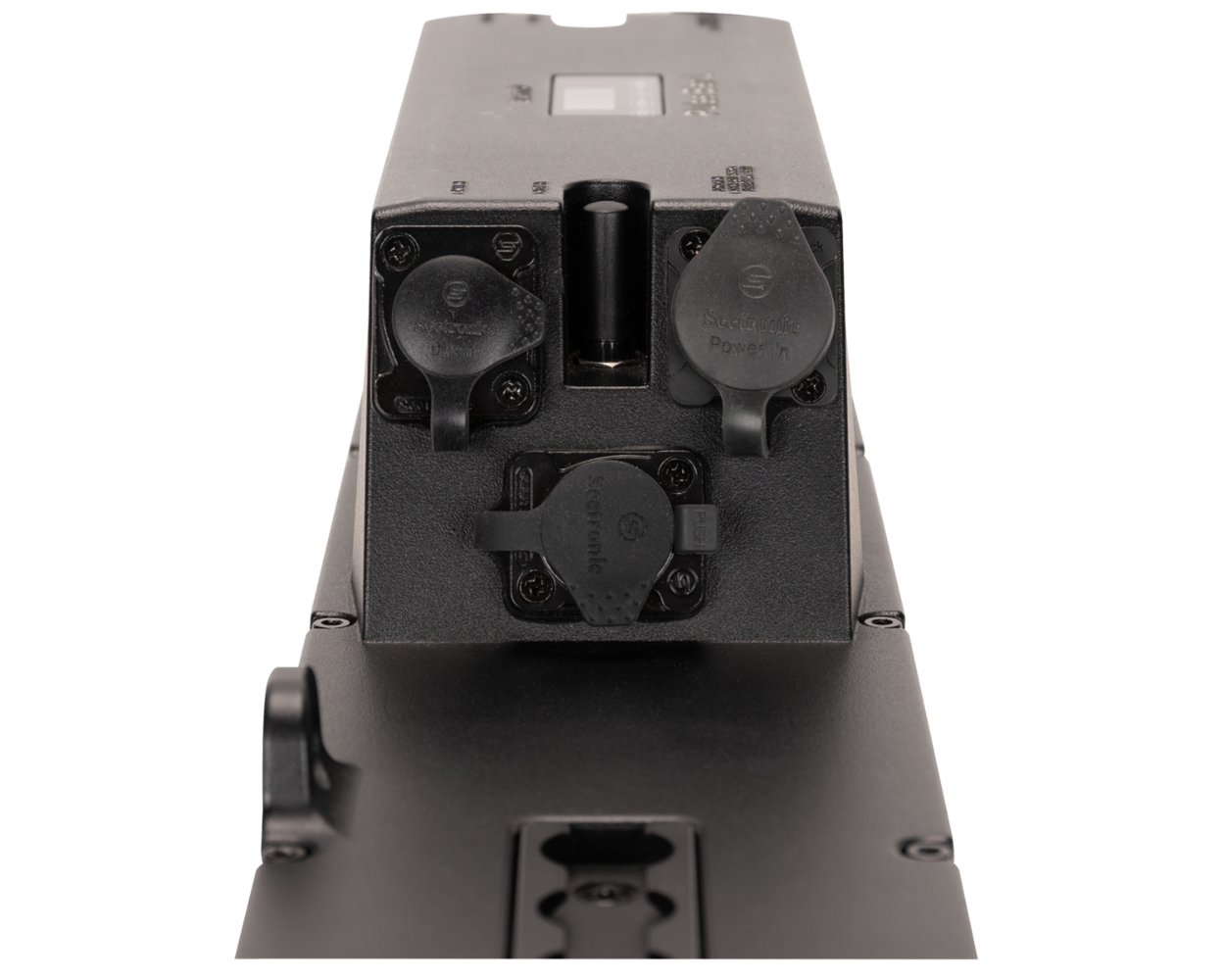

IP65 5pin XLR DMX In/Out
IP65 RJ45 Ethernet In/Out (Art-Net, sACN,
KlingNet)
IP65 Locking Power Cable In
SIZE / WEIGHT
Length: 39.4” (1000mm)
Width: 6.9” (176mm)
Vertical Height: 8.1” (205mm)
Weight: 27.55 lbs (12.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 1300W
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 4433
INCLUDED ITEMS
Safety Cable
IP65 Locking Power Cable
Fixture Interconnect Splice
OPTIONAL ITEMS
BAR L NSP Lens (BLL021)
BAR L WFL Lens (BLL061)
BAR L XFL Lens (BLL101)
BAR L L140 Lens (BLL141)
BAR L L1060 Lens (BLL161)
# 8050000053 - Omega Bracket (Qty.2)
Fixture Interconnect Splice Package (FISP06)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm
(LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm
(LTR112)
Interconnect Clamp Adapter (FICA01)
