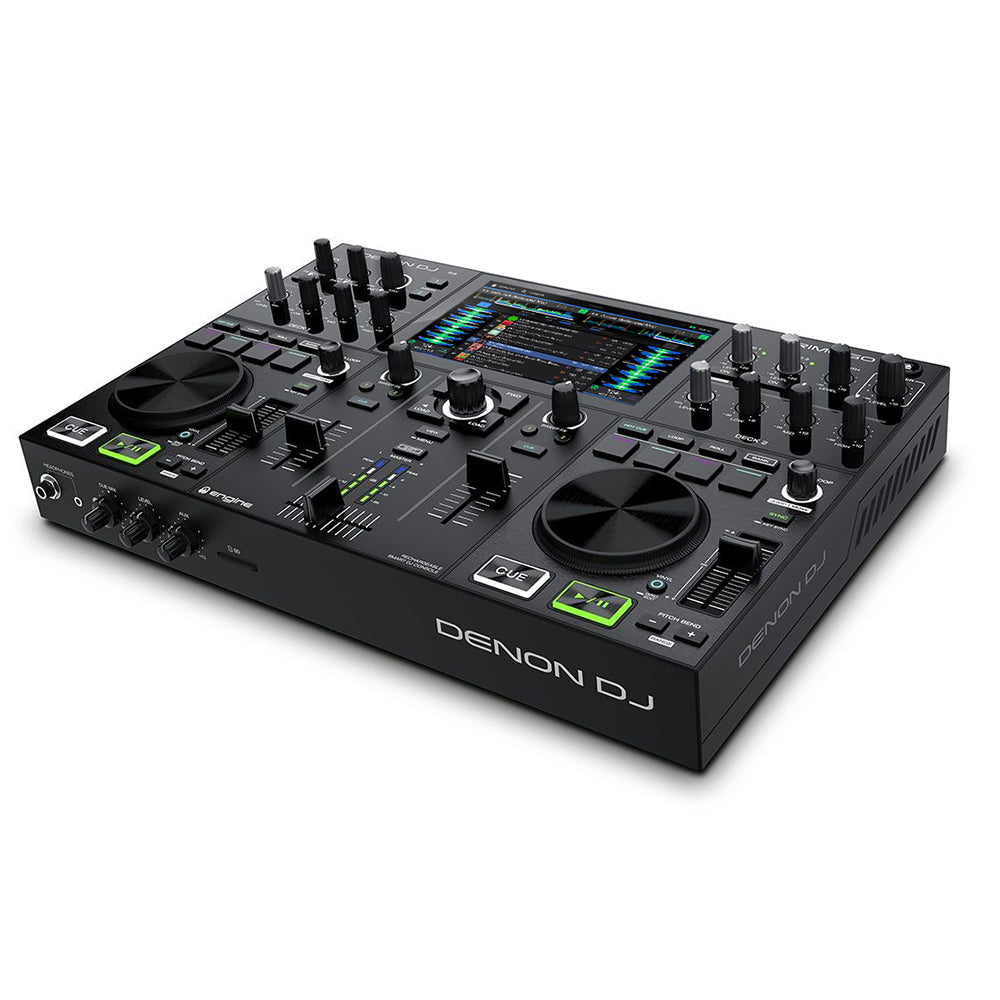

PRIME GO

2-Deck Rechargeable Smart DJ Console with 7” Touchscreen

TECHNICAL SPECIFICATIONS

• Audio
• Frequency Response: 20 Hz - 20 kHz (+/- 1 dB)
• Dynamic Range: > 109 dB (A-weighted)
• Signal-to-Noise Ratio: > 92 dB (A-weighted)
• Channel Separation: < -88 dB (1 kHz, unity)
• Headroom:
  • Aux: > 15 dB
  • Mic Input: > 20 dB
  • Outputs: > 15 dB
• T.H.D.
  • Aux: < 0.01% (1 kHz, unity)
  • Microphone: < 0.02% (1 kHz, unity)
• Analog Input
  • Aux:
    • +15 dBV (maximum)
    • 0 dBV (unity)
  • Microphone:
    • -40 dBV (unity)
    • -54 dBV (minimum)
• Analog Output
  • Master, Balanced:
    • +18 dBu (maximum)
    • +4 dBu (unity)
  • Master, Unbalanced:
    • +15 dBu (maximum)
    • 0 dBu (unity)
  • Booth:
    • +18 dBu (maximum)
    • +4 dBu (unity)
  • Headphone Output: < 40 mW

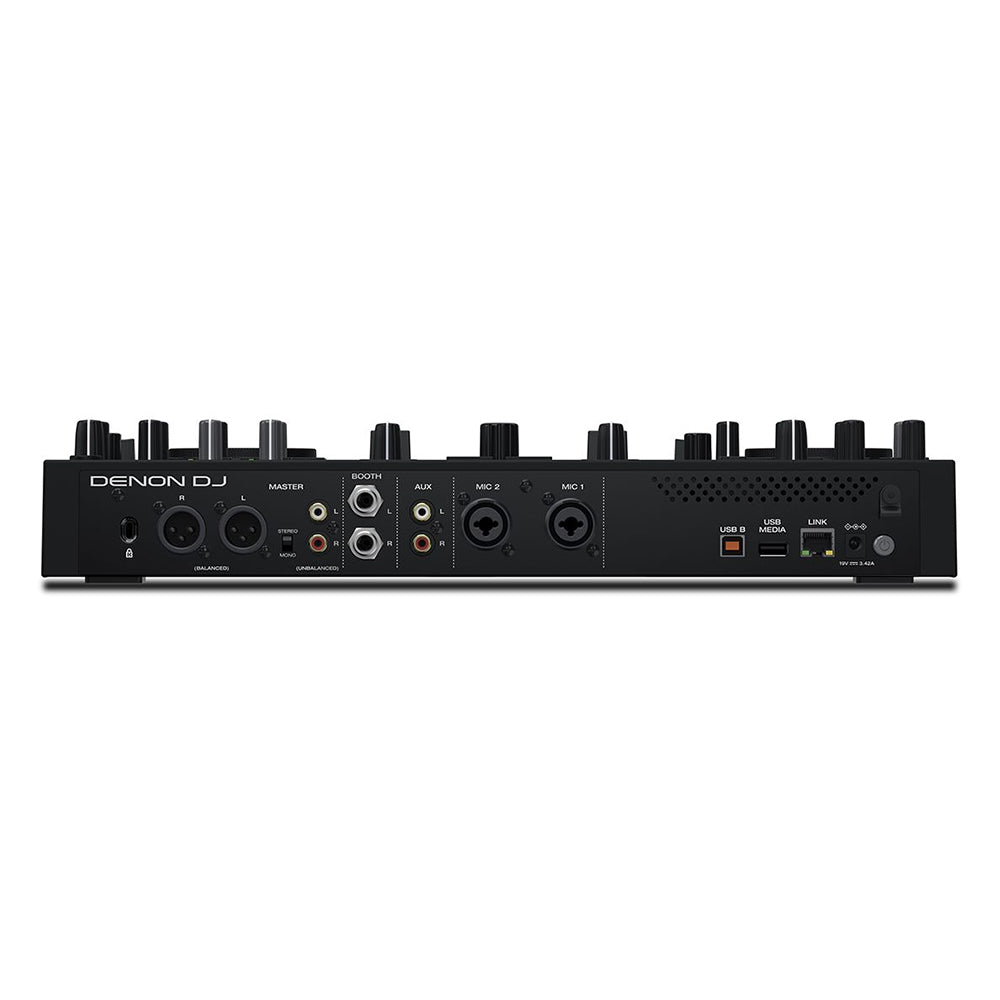

• Connections
  • (2) XLR outputs (master left/right, balanced)
  • (1) RCA output pair (master left/right, unbalanced)
  • (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
  • (1) 1/4" (6.35mm) stereo output (headphones)
  • (1) 1/8" (3.5mm) stereo output (headphones)
  • (1) RCA input pair (line-level, unbalanced)
  • (2) XLR + 1/4" (6.35mm) inputs
  • (1) USB ports (for USB drives)
  • (1) USB port (to computer)
  • (1) SD card slot
  • (1) Ethernet port
  • (1) Power adapter input
• Power
  • Connection: DC, Center Positive
  • Voltage: 19V 3.42A
  • Consumption: 30W maximum
• Dimensions (Width x Depth x Height)
  • 411mm x 274mm x 53mm
  • 16.2” x 10.8” x 2.1”
• Weight (Without USB and Power Cable)
  • 8.11 lbs.
  • 3.68 kg
