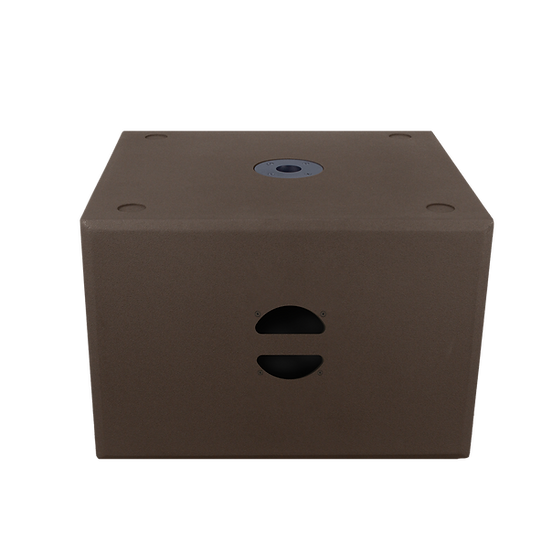

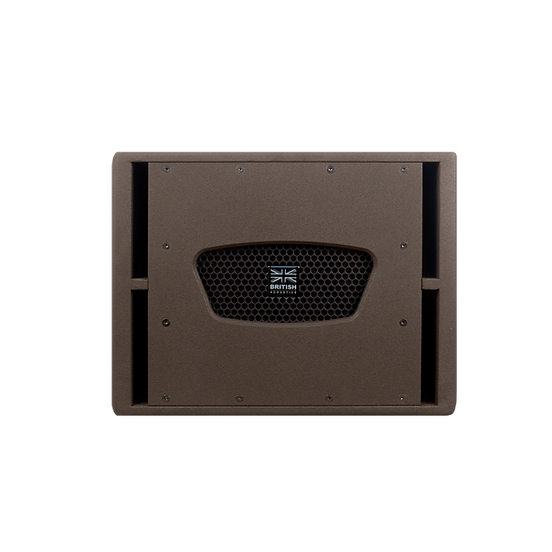

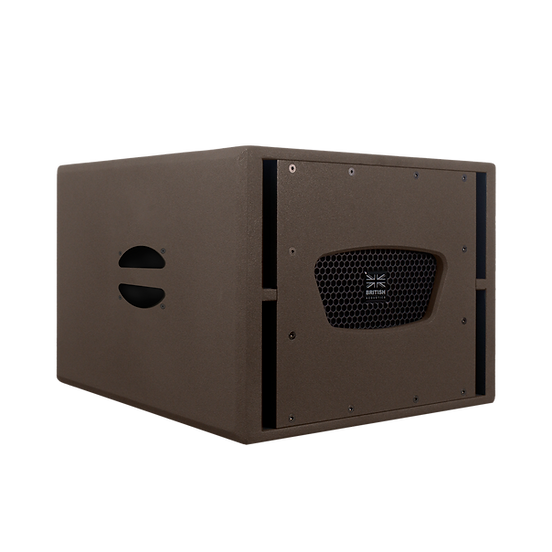

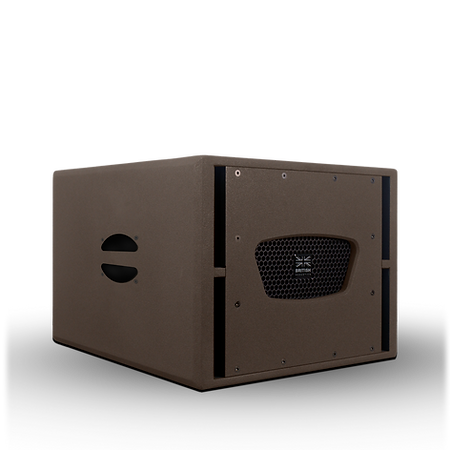

XP 52 S
12" Band Pass Subwoofer
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 49 Hz - 200 kHz
• Freq. Range (-10 dB) : 29 Hz - 200 kHz
• Omni Directional
• Cardioid presets available
• Crossover : 80 - 120 Hz
Active
• Max Output : 121dB, 127dB
Peak
Amplifier & DSP Specifications
• 2500W - Three Channel
Class-H Amplifier
• CH 1 : 1 x 1500W for the subwoofer
• CH 2/3 : 500W Each to connect satelite
speakers
• M1 Power Factor Crossover Module
• Enhanced Amplifier efficiency
• 3-Stage System protection process
• 24-Bit Built-In DSP for Superior voicing
• On-Board 2 Channel Mixer with Bluetooth
• 2 x TRS Jack mic input, 1 x XLR line input,
1 x XLR line output & 1 x Bluetooth input
• 2 x 16A PowerCon Connectors, Input & Thru
LF TRANSDUCER
• 12X200 - 12" Low Frequency Driver
• 400W AES, 1600W Peak
• 3" Voice Coil - Ferrite Magnet
• Long Excursion Magnetic Circuit
• Special Surrounds for ULF boost
HOUSING
• Larch Pine Wood Enclosure
• Granular Scratch Free Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• Stackable Rubber Feet
• M10 Flying Inserts
• Threaded Pole Socket
• Optional Wheels for Easy Portability
OPERATING PARAMETERS
• Operating positions: Can be used horizontally or vertically and can be used as a stack of subs
• Maximum permitted ambient temperature (Ta max) 40° C (104° F)
• Minimum permitted ambient temperature (Ta min): 4° C (39.2° F)
IP SPECIFICATIONS
• Standard Version : IP 43 - Standard protection against dust & splashes
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 567 x 400 x 570 mm (H x W x D)
• Product : 22 x 15 x 22 inch (H x W x D)
• Packed Individually
WEIGHT
• Net : 30 Kgs
• Net : 66.1 Lbs
SHIPPING INFORMATION
• Carton Size
642 x 475 x 645 mm (H x W x D)
25.27 x 18.70 x 25.39 inch (H x W x D)
• Gross Weight - 31.5 Kgs / 69.44 Lbs
• Packed : Individually
