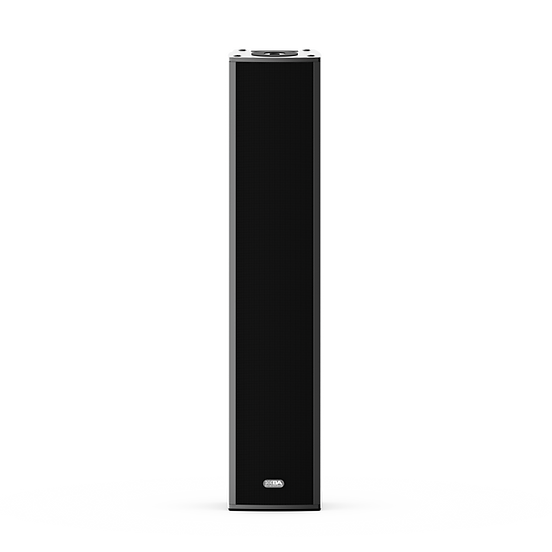

4" Expandable Column Speaker - IP67
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 150 Hz - 18 kHz
• Freq. Range (-10 dB) : 110 Hz - 18 kHz
• Rated Power : 60W AES, 240W Peak
• H Dispersion : 120º
• V Dispersion : 30º
• Nominal Impedance : 8 Ω
• Max Output : Cont 105 dB, Peak 111 dB
• Shielded Screw Terminals
SYSTEM SPECIFICATIONS
• Recommended Subwoofers : See Systems
Chart for compatible subwoofers.
• Recommended System Control : Can be used
without DSP or with the PW-Six DSP for
voicing & tonal benefits
• Recommended Amplifiers : See Amplifier
load calculation chart
LF TRANSDUCER
• 4" Full Range Driver
• 60W AES, 240W Peak
• 1" Copper Voice Coil - Ferrite Magnet
• 4 Driver Column
• Environmental Resistance Coating
• Onyx Terra-Coating for enhanced
resistance against environmental factors
• Precise Beam Forming to combat lobing or
comb filtering, and ensuring a coherent
acoustic centre
HOUSING
• Die-Cast, Coated Aluminum Shell
• Matte Black Paint
• Perforated Stainless Steel Grills
• Hidden Screw Terminals
• V8 Pole Coupling to make the column
longer
• No Handles, Ridges on body for easy lifting
• Screw inserts for Wall Brackets
AESTHETIC
SPECIFICATIONS
• British Acoustics Signature Matte Black Tone
• Non Reflective, Matte Black Grills
OPERATING PARAMETERS
• Operating Positions : Must be deployed
vertically, and with the original V8 column
extenders in case of a longer column unit
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -20° C (-4° F)
IP SPECIFICATIONS
• IP 67 - Offers resistance against dust, water
& corrosion
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Carton Size
583 x 278 x 278 mm (H x W x D)
23 x 10.9 x 10.9 inch (H x W x D)
• Gross Weight : 11.55 Kgs / 25.47 Lbs
• Packed : Individually
WEIGHT
• Net : 11 Kgs
• Net : 24.25 Lbs
SHIPPING INFORMATION
• Carton Size
583 x 278 x 278 mm (H x W x D)
23 x 10.9 x 10.9 inch (H x W x D)
• Gross Weight : 11.55 Kgs / 25.47 Lbs
• Packed : Individually
